> Sewing clutch motor

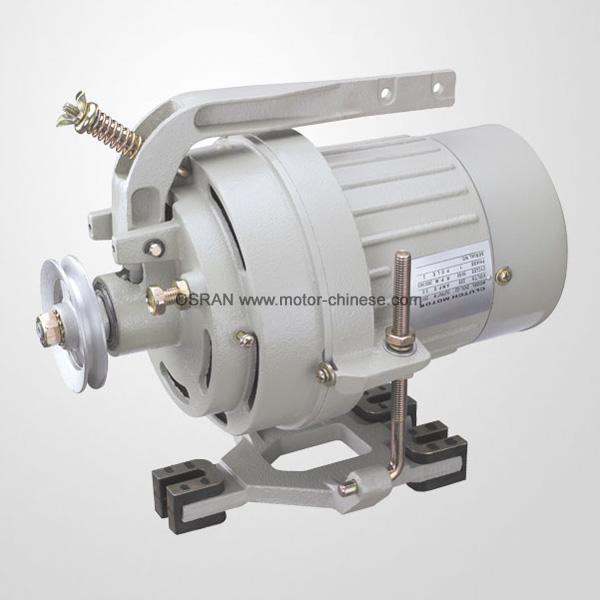

Series 22 Sewing machines motor, Clutch motor,Single phase motor, induction motor
- Execution standard: IEC
- Voltage,Frequency: 110V/220V380V, 50Hz/60Hz
- Rated power: 1/6HP,1/3HP,1/2HP,3/4HP
- Model: DOL, YSL
- Product description: The clutch motors are ac motor and induction motors.The electric motor widely used in industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equi
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF 22 SEWING MOTOR
1. Product is designed based on features of high Efficiency(performance) industrial sewing machine.
2. All products are tested by the complete test to ensure the best quality.
3. Horsepower is enough, less temperature rise, low vibration, low noise,
4. High quality clutch and cork for longer endurance.
5. Lever, Slide base and Brake are easily adjusted.
2. USED OF ELECTRIC MOTOR
1.The electric motor is widely used in: industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equipment need clutch type power output.
4. TECHNICAL DATA
Clutch motor series 22:
|
Rated Power (W) |
Poles |
Voltage (V) |
Speed RPM (50/60Hz) |
Number of phase |
|
|
DOL-12 |
250(1/3HP) |
2 |
220 |
2850/3450 |
1 |
|
DOL-12S |
250(1/3HP) |
2 |
220 |
2850/3450 |
1 |
|
DOL-22 |
250(1/3HP) |
2 |
220 |
2850/3450 |
1 |
|
DOL-22L |
250(1/3HP) |
4 |
220 |
1450/1750 |
1 |
|
YSL-22 |
250(1/3HP) |
2 |
380 |
2850/3450 |
3 |
|
YSL-22L |
250(1/3HP) |
4 |
380 |
1450/1750 |
3 |
|
DOL-23 |
400(1/2HP) |
2 |
220 |
2850/3450 |
1 |
|
DOL-23L |
400(1/2HP) |
4 |
220 |
1450/1750 |
1 |
