> Sewing clutch motor

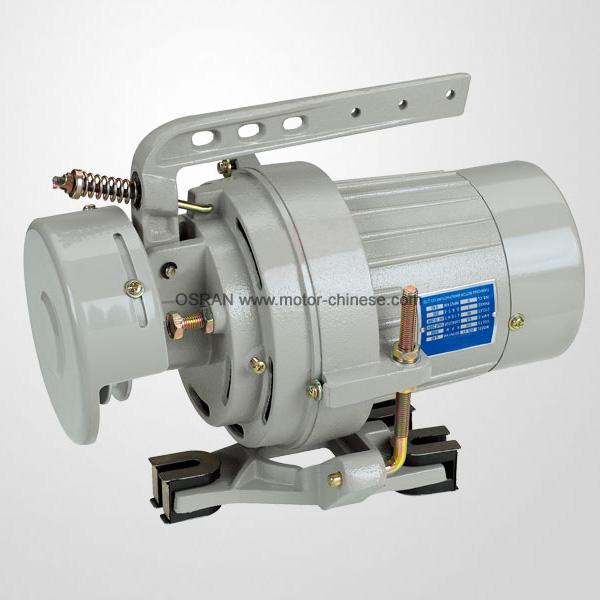

Series 63 Sewing machines motor, Clutch motor,Single phase motor, induction motor
- Execution standard: IEC
- Voltage,Frequency: 110V/220V380V, 50Hz/60Hz
- Rated power: 1/6HP,1/3HP,1/2HP,3/4HP
- Model: DOL, YSL
- Product description: The clutch motors are AC motors,induction motors.The electric motors widely used in: industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equip
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF 63 SEWING MOTOR
1. The sewing motor is designed based on features of high Efficiency(performance) industrial sewing machine.
2. All ELECTRIC MOTORs are tested by the complete test to ensure the best quality.
3. Horsepower is enough, less temperature rise, low vibration, low noise,
4. High quality clutch and cork for longer endurance.
5. Lever, Slide base and Brake are easily adjusted.
2. USED OF 63 SEWING MOTORS
1.The electric motor is widely used in: industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equipment need clutch type power output.
Clutch motor series 63:
|
Rated Power (W) |
Poles |
Voltage (V) |
Speed RPM (50/60Hz) |
Number of phase |
|
|
DOL-62 |
250(1/3HP) |
2 |
220 |
2850/3450 |
1 |
|
DOL-62L |
250(1/3HP) |
4 |
220 |
1450/1750 |
1 |
|
YSL-62 |
250(1/3HP) |
2 |
380 |
2850/3450 |
3 |
|
DOL-63 |
400(1/2HP) |
2 |
(1) 110 |
(1) 3450 |
1 |
|
(2) 220 |
(2) 2850/3450 |
||||
|
(3) 110/220 |
(3) 2850/3450 |
||||
|
DOL-63L |
400(1/3HP) |
4 |
(1) 110 |
(1) 1750 |
1 |
|
(2) 220 |
(2) 1450/1750 |
||||
|
(3) 110/220 |
(3) 1450/1750 |
||||
|
YSL-63 |
400(1/2HP) |
2 |
(1) 380 |
2850/3450 |
3 |
|
(2) 220 |
