1. PRODUCT INTRODUCTION OF single phase motor

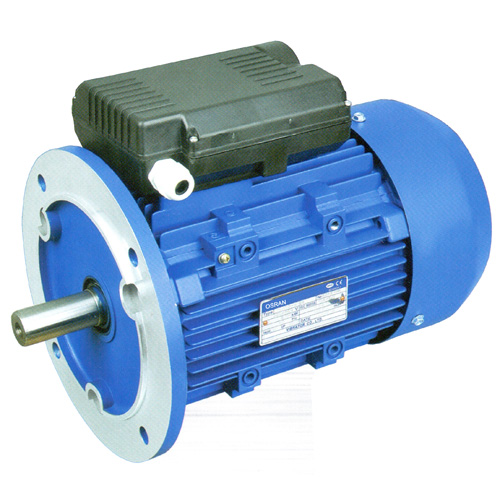

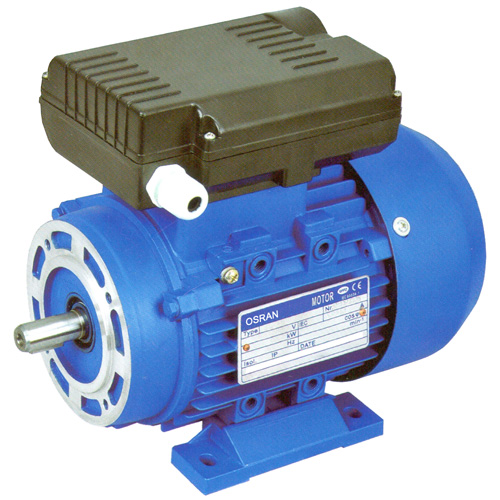

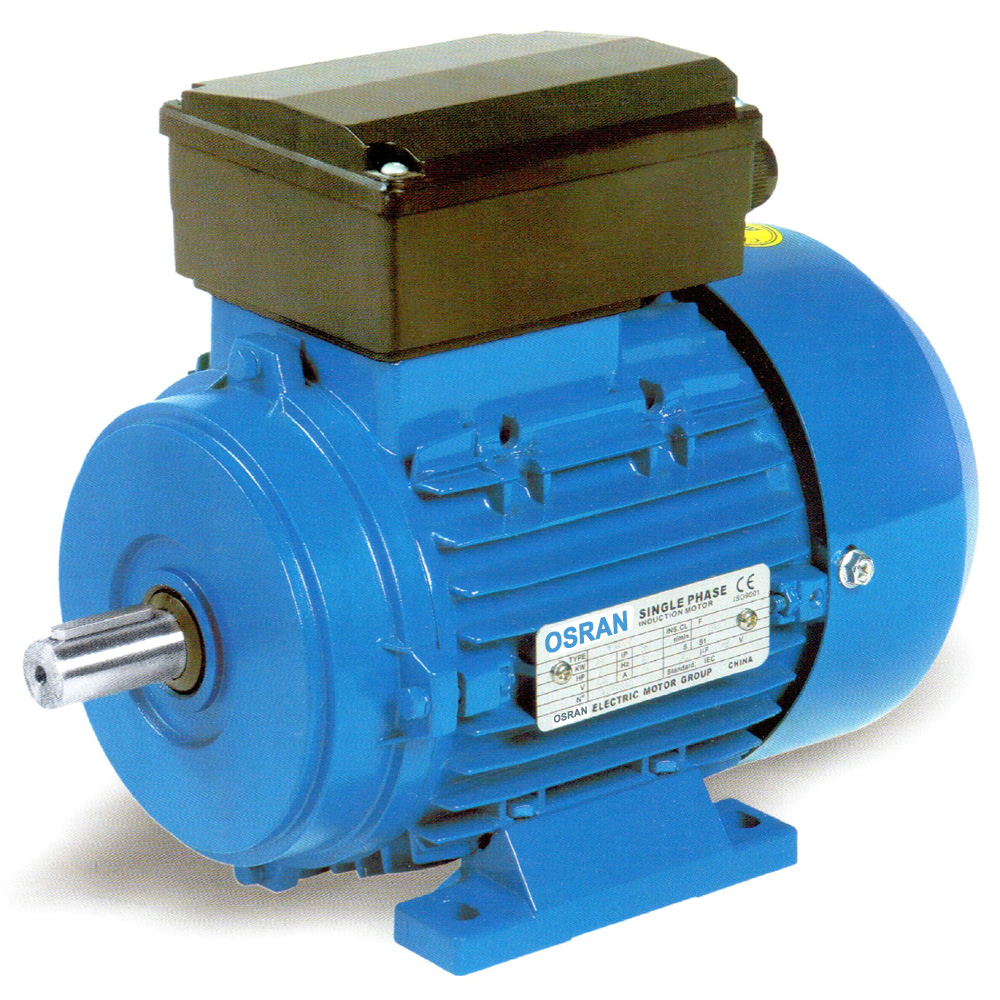

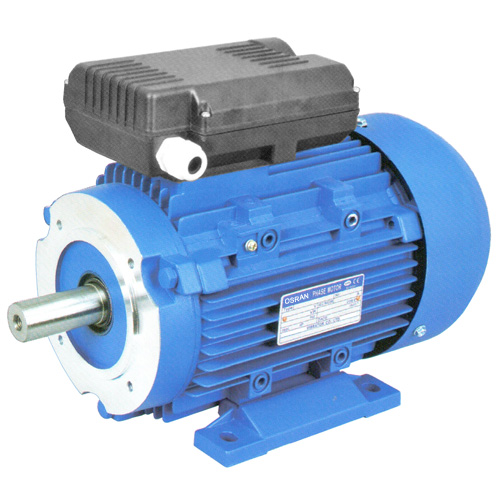

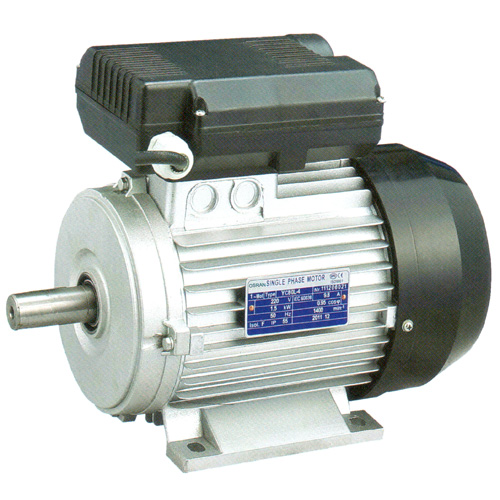

YC/ MC series is single-phase motor,capactitor-start motor,AC induction asynchronous motor. It is totally enclosed fan-cooled type.the ELECTRIC MOTORs are produced according to IEC standard.The electrical motors have many advanced technical parameters.

The mounting dimensions of the electric motors are all in conformity with IEC standarde. Adopt aluminum or iron  frame, end shields and base. Beautiful appearance, light weight,reasonable structure, simple construction, insulation vacuum impregnation, superior paint finish.The electric motor give excellent performance such as stable operation, little vibration, low noise, low temperature rise, high overload capacity, easy maintenance.

The electro-motor has a high starting torque, it is 2-3 times as rated torque. It can be widely used in all kinds of small machine tools, compressor pumps, air compressors, pumps, refrigerators, refrigerated machine, medical equipment, instruments and meters, and the equipment which need bigger starting torque, etc.

The electric motors are wonderful utilities for family and workshop where only single-phase power are available.

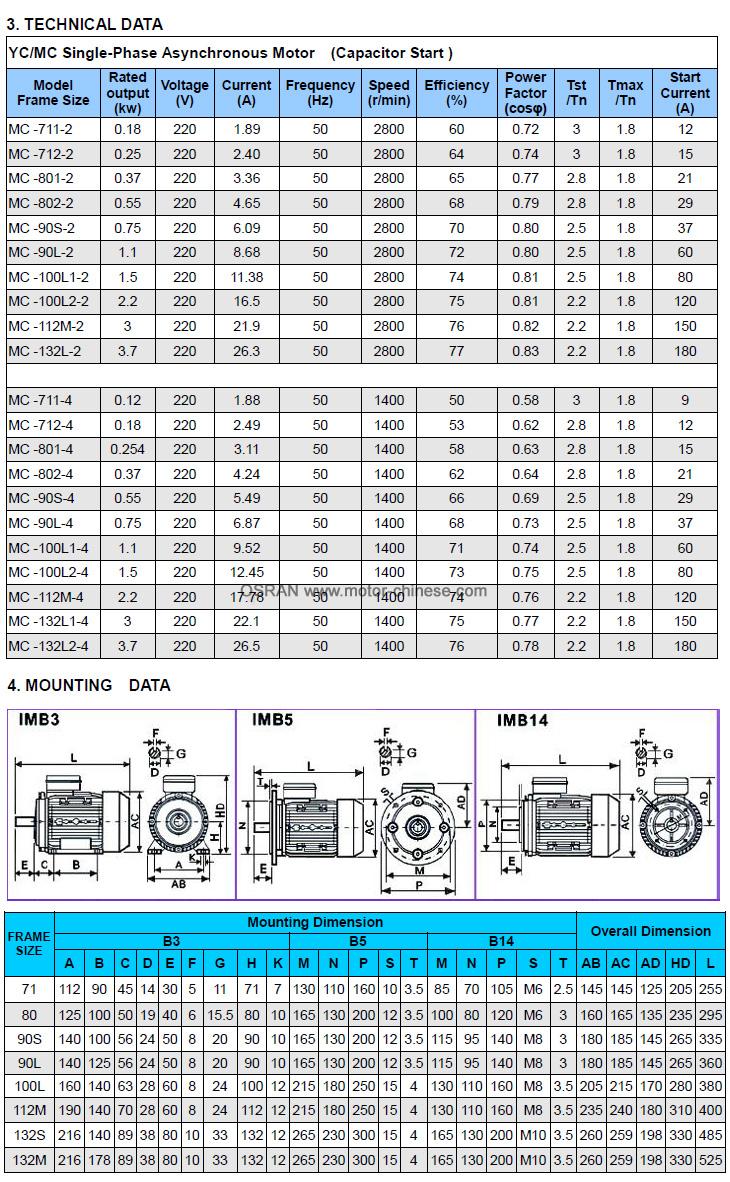

2. TECHNICAL FEATURES OF SINGLE PHASE MOTOR

1. Execution standard: IEC

2. Mounting size: IEC

3. Frame size: H71~H100   Pole: 2P, 4P

4. Rated power: 0.18KW~1.5KW

5. Voltage: 220V

6. Frequency: 50Hz

7. Operation mode: S1 (continuous running)

8. Enclosed protect class: IP54

9. Insulation class: B

10. Cooling method: IC0141

11. Mounting types: IM-B3, B5, B35, B14, B34, V1, V3 ,V5, V6, V18, V19 , V36.

12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº

Note: the inquiry or order need to indicate the electric motor model(including frame center’s height,frame length, core length, No. of poles, power, voltage, frequency) ,Mounting method, terminal box location(top/side).

If customers have special request for voltage, frequency and other, can be mentioned in the inquiry or order.
