Y High-voltage Large-power Box Motor,6KV 10KV electric motor,High-power induction motor

1. PRODUCT INTRODUCTION OF Y ELECTRIC MOTOR

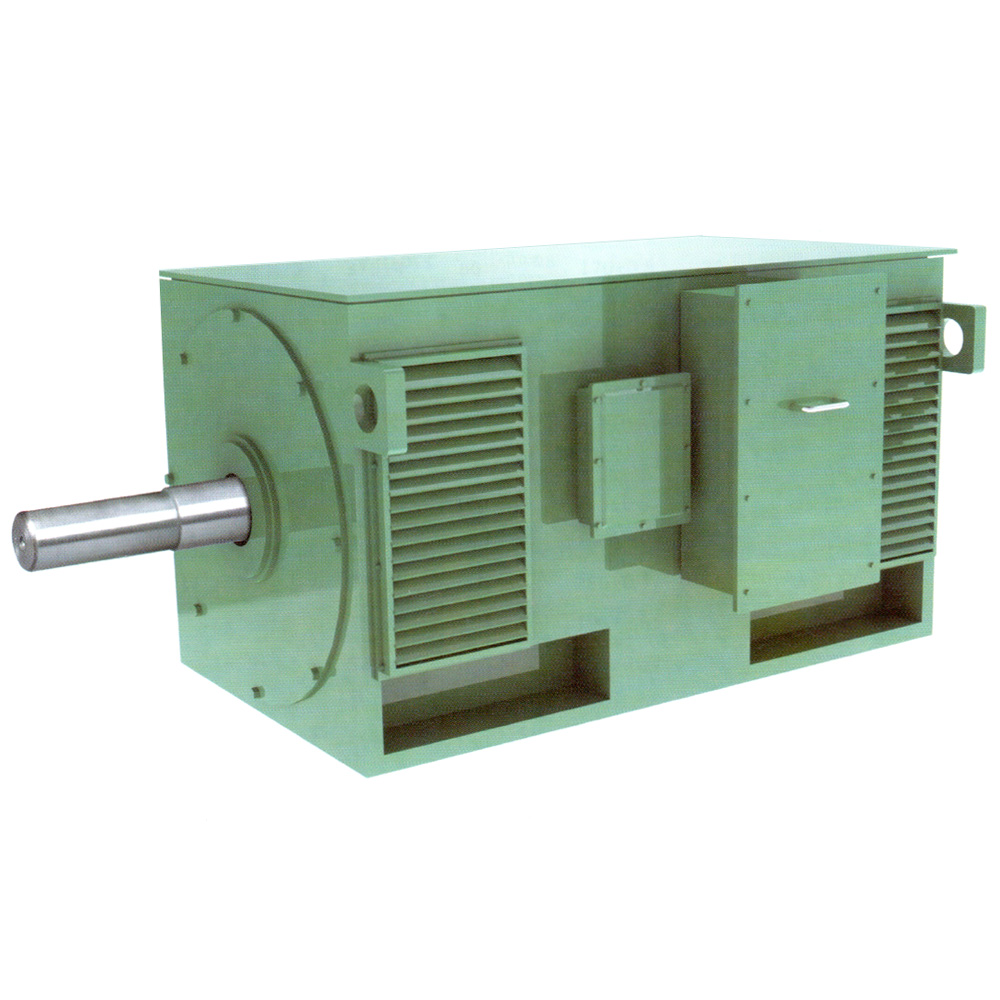

Y series are medium-sized high-voltage three-phase asynchronous motor,box motors,case motors,ac motor and INDUCTION MOTORs, the electric motors are news products that our company made on the basis of digesting and absorbing similar design and manufacture technique in the world, we made a lot of improvements and innovations, the performance of the product is more optimized, the structure is more reasonable and reliable. Y electric motors’s design, manufacture, testing are in line with IEC standards.

Y electrical motor frame base is welded with steel plate into box structures, and at the same time, I strengthened the hardness of 45º position of frame. At the top of the electric motors, there can be choosed air-air or water-air cooler for heat exchange, easy disassembly and maintenance. The stator coil adopts copper wire with F grade insulation, heat insulation moisture resistance are better. In production, multiple turn to turn impulse voltage tests and to-ground high voltage tests are performed, the stator is VPI treated with advanced German vacuum pressure impregnation solvent-free varnish equipment and process. Therefore, the electric motor has excellent and reliable insulation property, strong damp-proof property. cold-rolled silicon steel sheet is adopted for iron core, unit volume loss is significantly reduced, the external press fitting structure of sator iron facilitates inserting coil and entire dip coating. Rotor has shaft collar structure,strengthening the rigidity of the shaft, increasing the area for air inletting of the rotor, cage rotor is adopted by cast aluminum technology.

2. PRODUCT USE OF ELECTRIC MOTOR

Y series electric motor has high efficiency, low noise, little vibration, reliable operation, easy installation and maintenance, etc. Y series electrical motor can be used to drive various kinds of general machinery, such as: fan, water pump, compressor, crusher, cutting machine, transport machinery, etc., Available for mining, machinery industry, petrochemical industry, power generation and other industrial enterprises.

If the electric motor is used to drive blower, coal mill, rolling mill or winding machine, the customer should specify the use and technical requirements in order, we will use a special design to protect the reliable operation of the electric  motor.

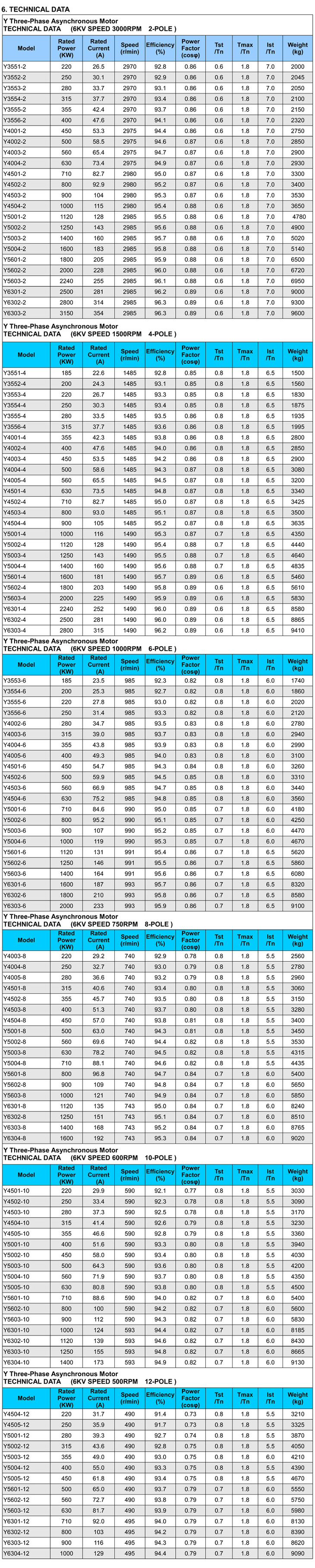

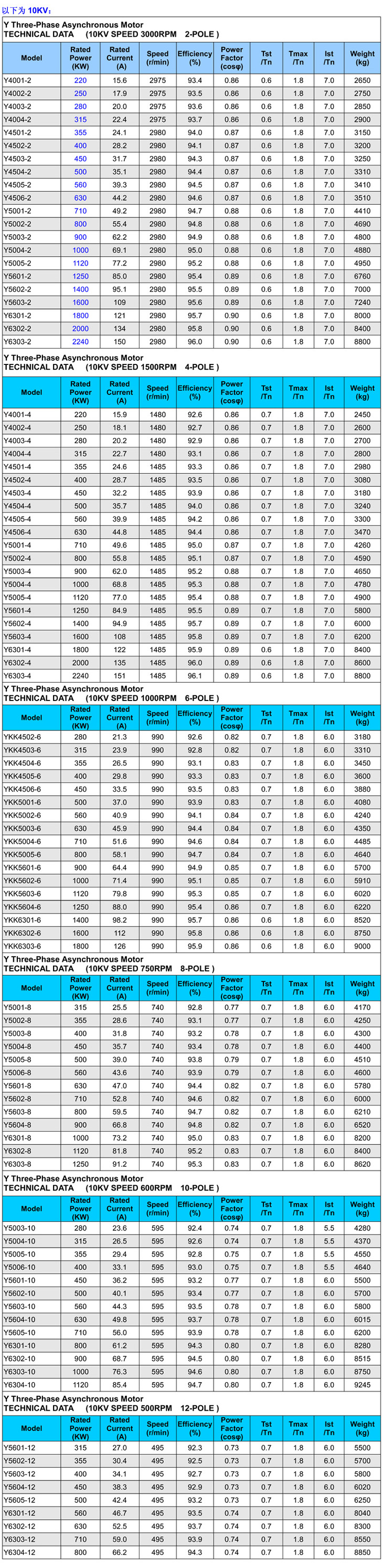

3. TECHNICAL FEATURES OF ELECTRIC MOTOR

1. Execution standard: IEC

2. Frame size: H355~H630

3. Rated power: 220KW~2500KW

4. Voltage: 6000V, 3000V, 10000V

5. Frequency: 50Hz, 60Hz

6. Pole: 2P, 4P, 6P, 8P, 10P, 12P

7. Operation mode: S1 (continuous running)

8. Enclosed protect class: IP23, IP44

9. Insulation class: F

10. Cooling method: IC01，IC11，IC21 or IC31

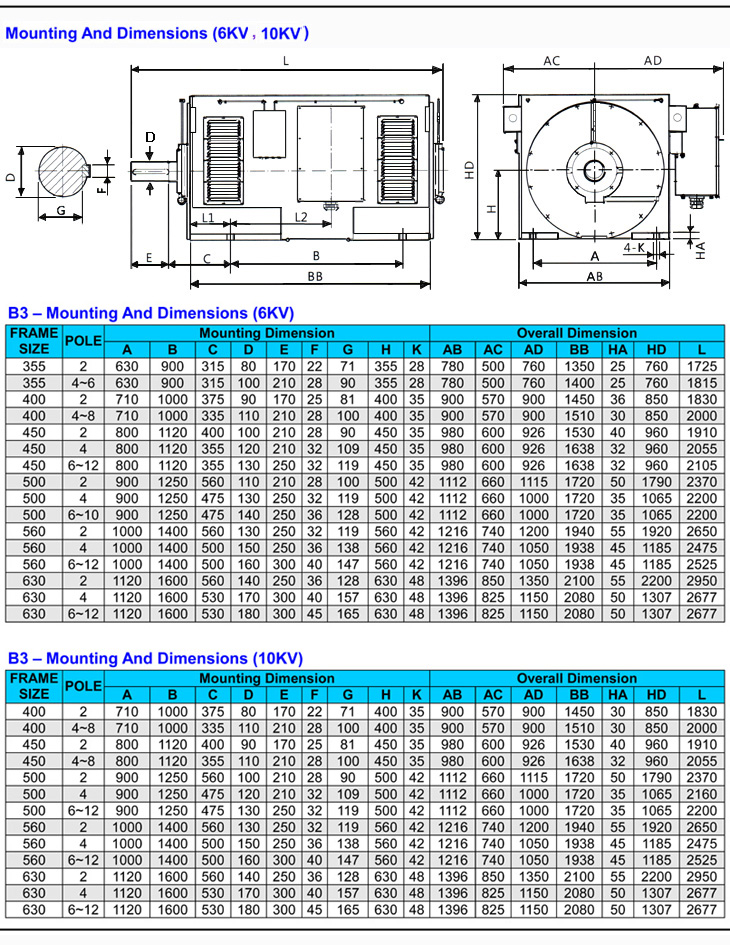

11. Mounting method: IMB3

12. Power supply conditions: voltage variable ±5%, frequency variable ±2%.

13. Ambient conditions: Altitude lower than 1000m; Ambient temperature -20~40Cº; Humidity less than 90%

and there is no heavy dust or erosive and explosive gas.

4. CUSTOMER CAN CHOOSE

1. Mouting method: default is horizontal, can choose vertical

2. Cooling method: default is air-air, can choose water-air

3. Main conduit box location: default is right side(view from the drive shaft end), can choose left of motor

4. Can choose stator winding thermometer PTC

5. Can choose bearing thermometer Pt100

6. Can choose moistureproof heater (space heater) .

5. ORDERING INSTRUCTION

When customer inquiry or order the electric motors, please specify the electric motor model,rated power, voltage, frequency, synchronous speed, rotation direction(view from the drive shaft end), mounting method, cooling method, protection grade (IP), terminal box location, load device name or use.

If customers have special request, such as other power, voltage, frequency, mounting size, shaft extension size, high locked-rotor torque, elevation, special ambient and other, please specify.
