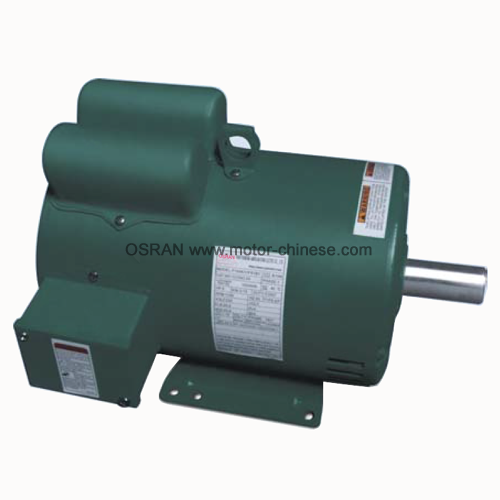

NEMA ODP electric motor,Single phase motor,NEMA EPACT induction motor
- Execution standard: NEMA America
- Voltage,Frequency: 230V,60Hz
- Frame size: 56~215T,56C~215TC
- Rated power: 1/3HP~10HP
- Product description: The induction electric motor are single phase motor with Open Drip Proof.The ac motor are used in Commercial Pumps,Swimming Pool Pumps,Fans,Conveyors,Air Conditioning Equipment,Small Machine Tools,Blo
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF NEMA ELECTRIC-MOTOR
NEMA ODP series are single phase rolled-steel motors with open drip proof,are ac motors,INDUCTION MOTOR. The electrical motors are developed by ourselves independently according to NEMA. The output rated power and mounting dimensions of the electrical motor are perfectly in accordance with NEMA.The NEMA ODP motors have reasonable structure, small vibration and low noise,they are made in china.
2. TECHNICAL FEATURES OF NEMA ELECTRIC MOTOR
1. Service Factor 1.15
2. Continuous Duty 40ºC Ambient
3. ODP (Open Drip Proof)
4. Class F Insulation With Class B Temp Rise
5. NEMA Design L
6. High Starting Torque and Low Starting Current
7. Rolled Steel Construction
8. Ball Bearings
9. Capacity Start/ Capacitor Run (1/3 thru 10 HP)
3. APPLICATIONS OF NEMA ELECTRIC MOTOR
1. Commercial Pumps
2. Swimming Pool Pumps
3. Fans
4. Conveyors
5. Air Conditioning Equipment A.K.A HVAC
6. Small Machine Tools
7. Blowers
8. Augers
9. Household Electric Appliances
10. Equipment Requiring Direct Drive
11. High Starting Torque
Note: When you inquiry or order, please you indicate the electric motor model(including frame size, No. of poles(speed), power, voltage) ,Mounting method, terminal box location (left / right).
If customers have special request for voltage,and other, can be mentioned in the inquiry or order.
