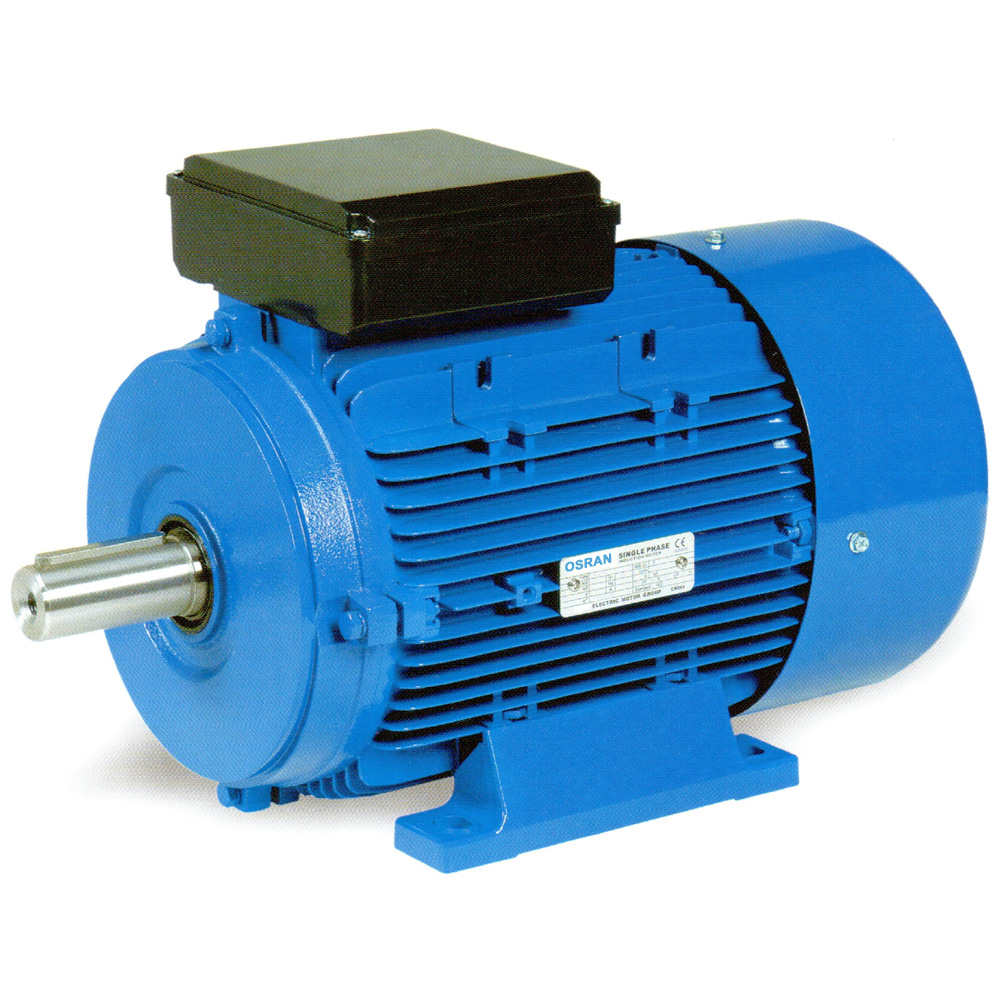

YL/ML Single-phase motor,Dual-Capactitor electric motor,induction motor,aluminum motors,AC electrical motors
- Execution standard: IEC
- Frame size: H71~H100
- Rated power: 0.37KW~3.0KW
- Voltage: 220V/50Hz
- Product description: YL/ ML electric motors are single phase Dual-Capactitor(capactitor-Start-run) motors,aluminum motor,AC electric motor.The induction motor has a strong starting torque, it is 1.8~2.5 times as rated tor
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF single phase motor
YL/ ML series is single-phase-motor, Dual-Capactitor motor(capactitor-start-run),ac asynchronous motor. It is totally enclosed fan-cooling type.the INDUCTION MOTORs are produced according to IEC standard.The ELECTRIC MOTORs have many advanced technical parameters. It possess frame No. and capacity as three-phase asynchronous motors.

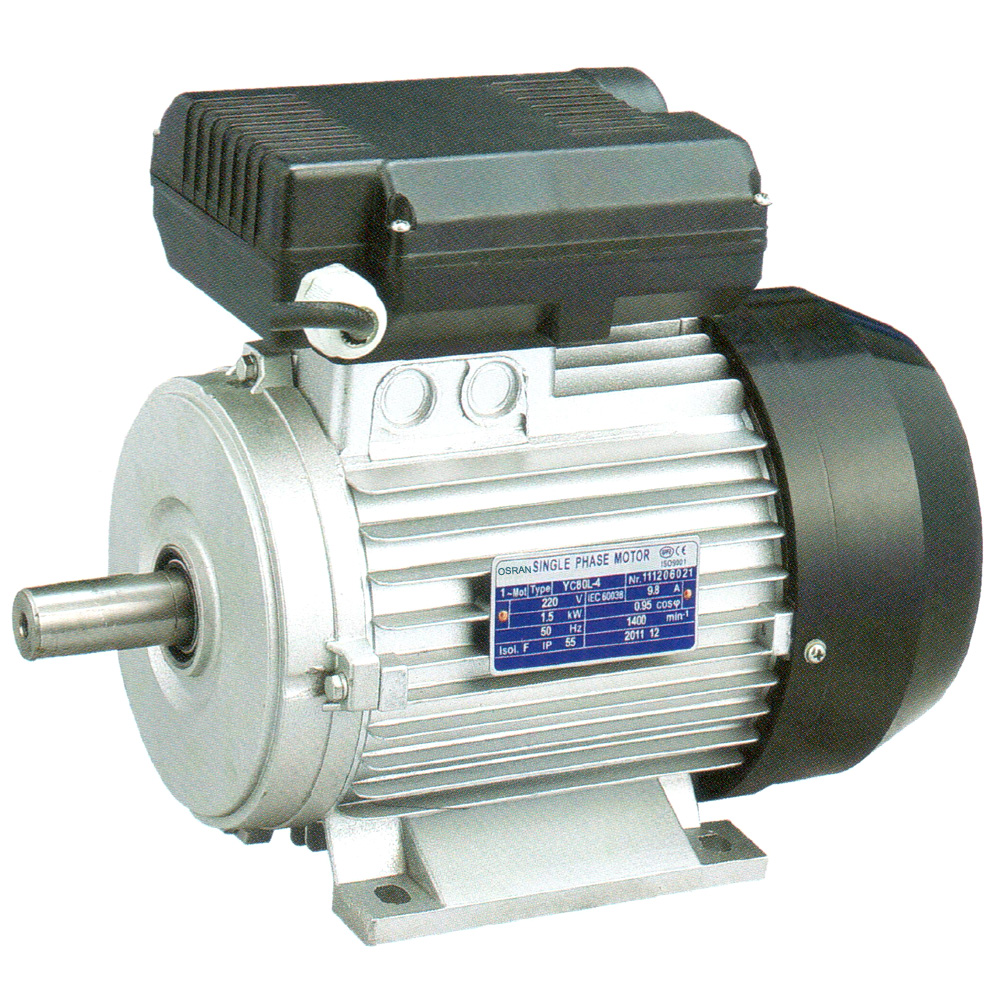

The mounting dimensions of the electric motors are all in conformity with IEC standarde. Adopt aluminum or iron frame, end shields and base.Beautiful appearance, light weight,reasonable structure, simple construction, insulation vacuum impregnation, superior paint finish.The motor give excellent performance such as small size high capacity,high power factor and efficiency,stable operation,little vibration,low noise,low temperature rise, high overload capacity, easy maintenance.
The single phase motor has a strong starting torque, it is 1.8~2.5 times as rated torque. YL/ ML series electric motors are suitable for machines and equipments such as full load start .

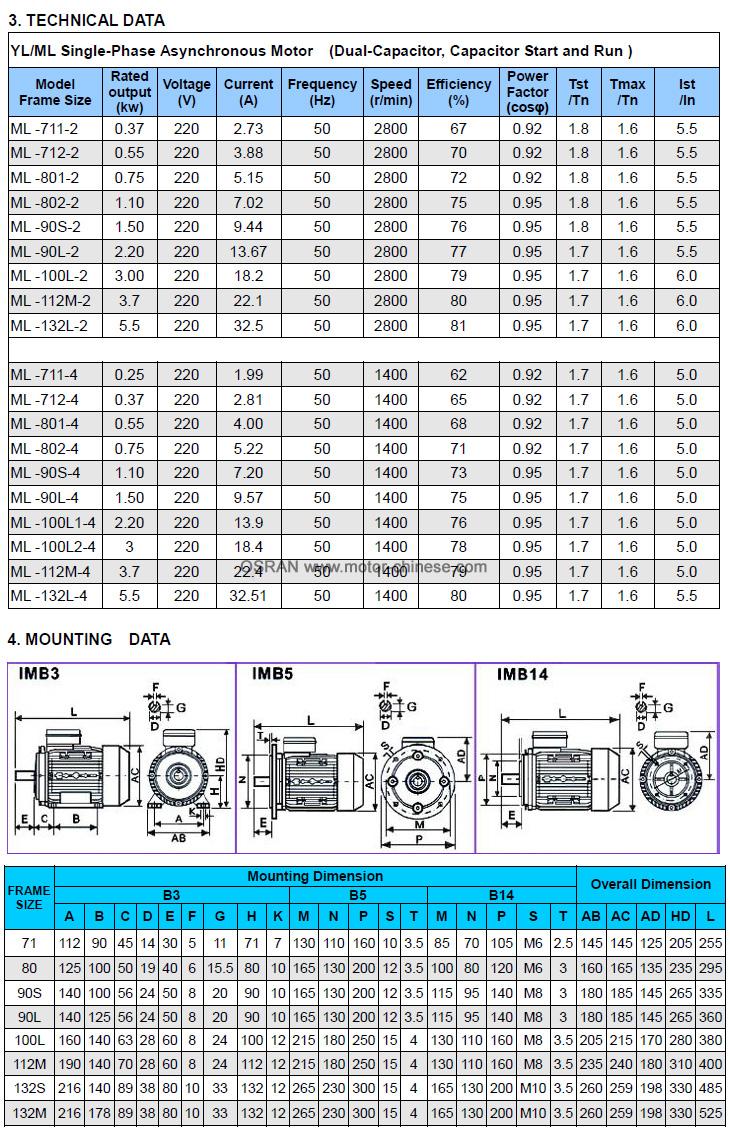

2. TECHNICAL FEATURES OF SINGLE PHASE MOTOR
1. Execution standard: IEC
2. Mounting dimensions: IEC
3. Frame size: H71~H100 Pole: 2P, 4P
4. Rated power: 0.37KW~3.0KW
5. Voltage: 220V
6. Frequency: 50Hz
7. Operation mode: S1 (continuous running)
8. Enclosed protect class: IP54, IP55
9. Insulation class: B
10. Cooling method: IC411

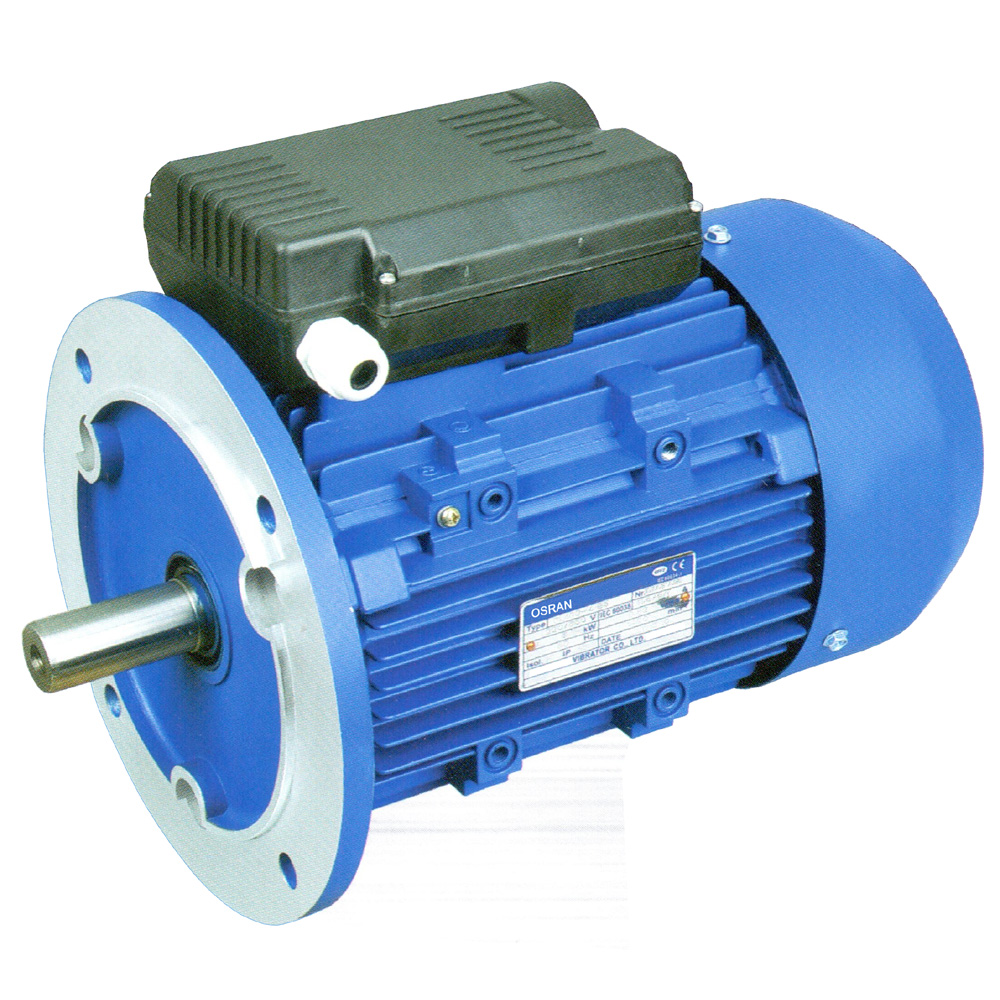

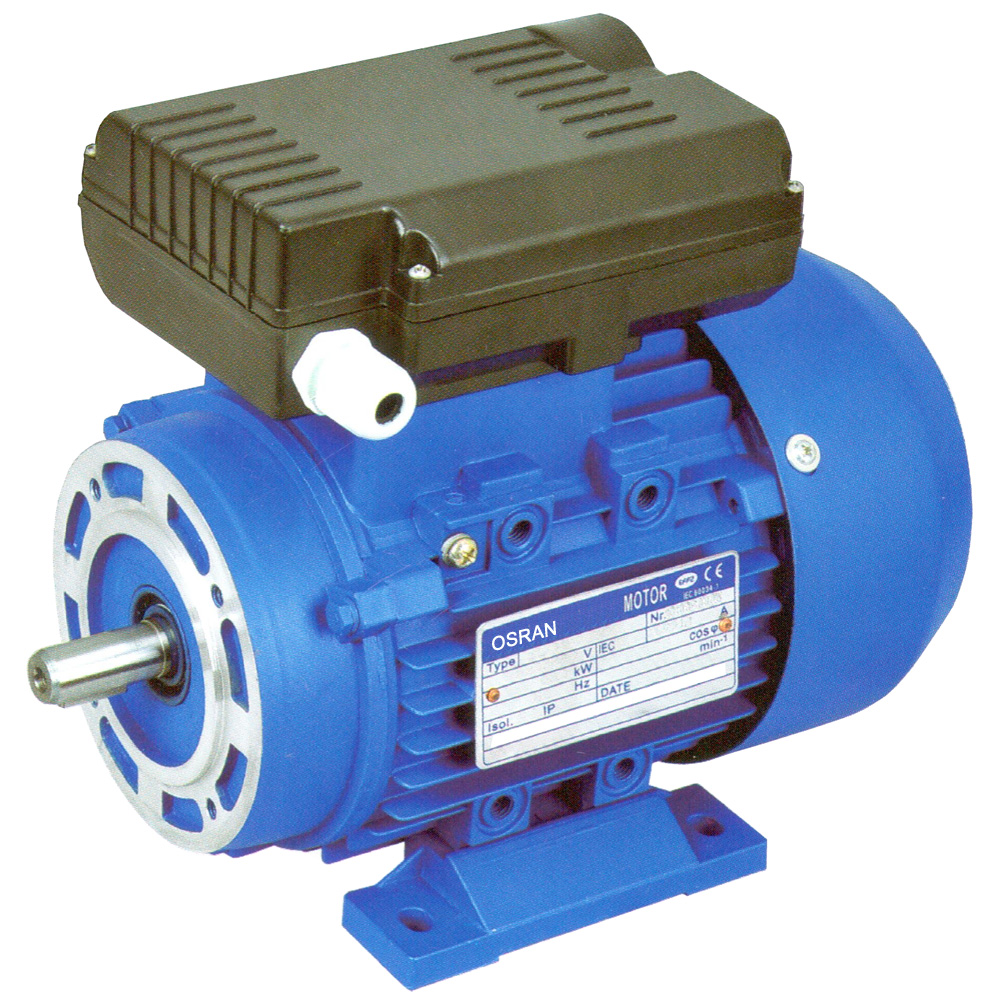

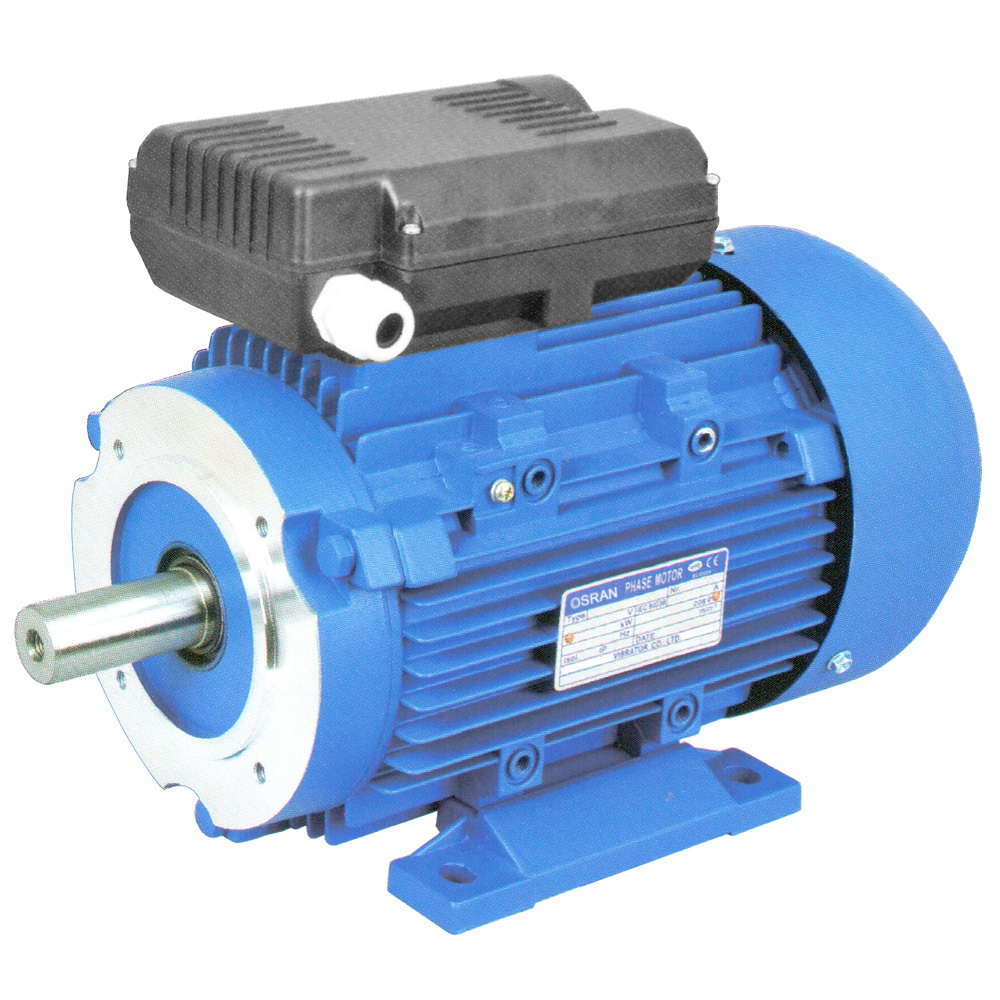

11. Mounting types: IM-B3, B5, B35, B14, B34, V1, V3 ,V5, V6, V18, V19 , V36.
12. Ambient conditions: Altitude is lower than 1000m; Ambient temperature is -15~40Cº
Note: the inquiry or order need to indicate the electric motor model(including frame center’s height,frame length, core length, No. of poles, power, voltage, frequency) ,Mounting method, terminal box location(top/side).
If customers have special request for voltage, frequency and other, can be mentioned in the inquiry or order.
