> Shaded pole motor

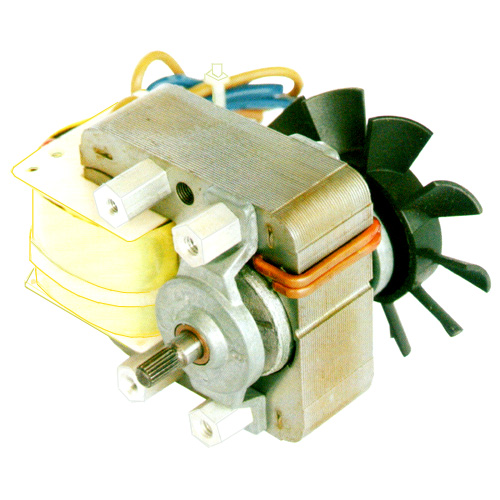

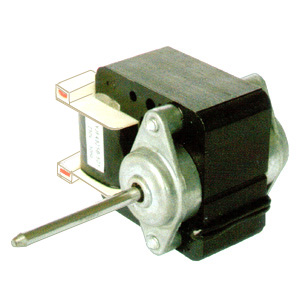

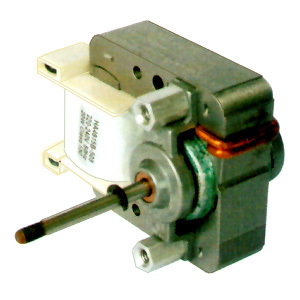

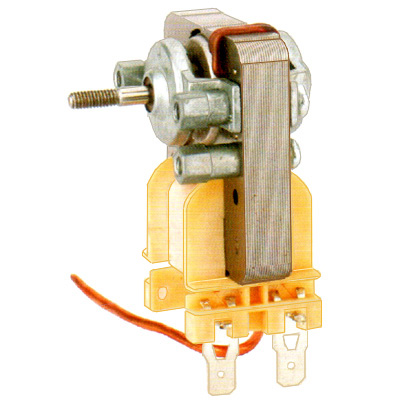

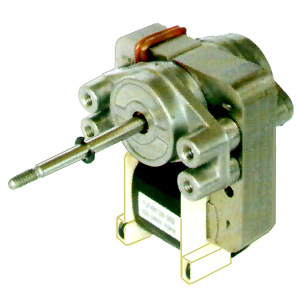

48 Shaded pole motors,Fan motors,Single phase motor,AC Electric motor,Electrical motors,Induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 48x50mm
- Customers can customize parameter
- Product description: OSR-48 electric motors are single phase shaded pole motors,AC Electric motor,induction motor.The electrical motors are used in mini fan, exhaust fan, heater, humidifier, condenser/refrigerator, air pu
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF 48 ELECTRIC MOTOR
OSR-48 series are single-phase motor, shaded pole motors,ac INDUCTION MOTOR, the electric motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in: mini fan, exhaust fan, heater, humidifier, condenser/refrigerator, air purifier, cross flow fan /crossflow blower, convection oven, electric oven, etc.
2. TECHNICAL FEATURES OF ELECTRIC MOTOR
3. Stator dimensions: 48x50mm
3. ORDER NOTICE
When customer inquiry or order the motors, please specify the electric motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose alloy bracket, or iron bracket.

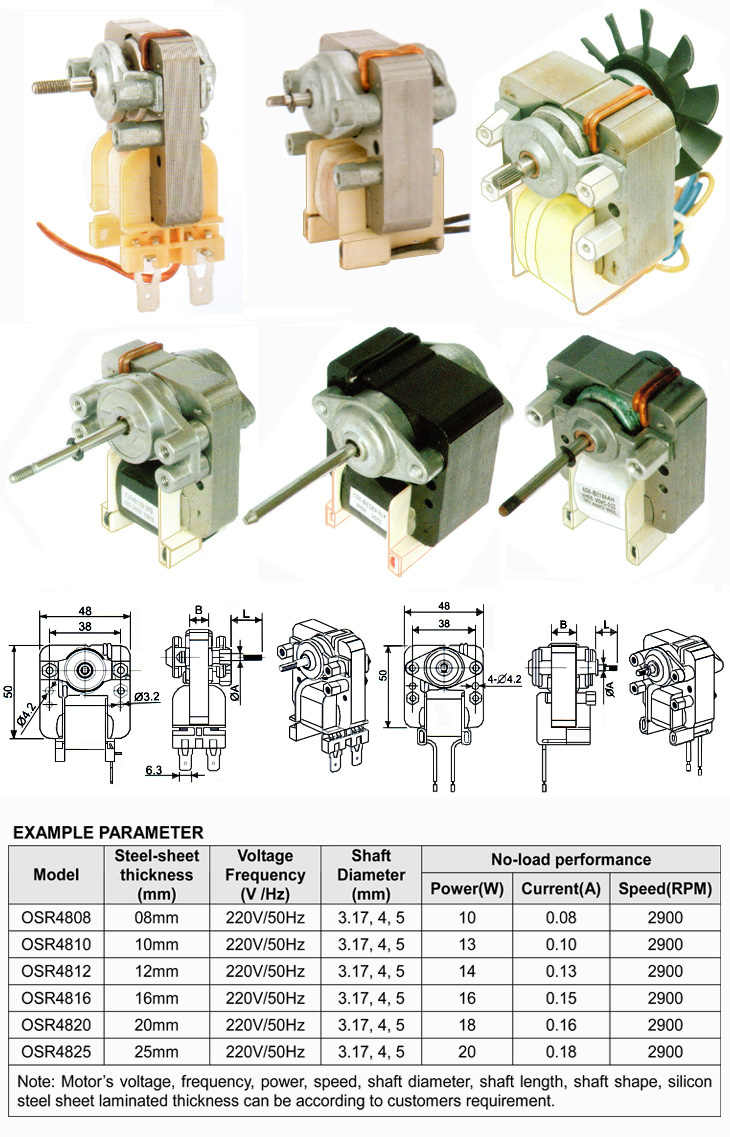

5. EXAMPLE PARAMETER
|
Model |
Steel-sheet thickness (mm) |
Voltage Frequency (V /Hz) |
Shaft Diameter (mm) |
No-load performance |
||
|
Power(W) |
Current(A) |
Speed(RPM) |
||||
|
OSR4808 |
08mm |
220V/50Hz |
3.17, 4, 5 |
10 |
0.08 |
2900 |
|
OSR4810 |
10mm |
220V/50Hz |
3.17, 4, 5 |
13 |
0.10 |
2900 |
|
OSR4812 |
12mm |
220V/50Hz |
3.17, 4, 5 |
14 |
0.13 |
2900 |
|
OSR4816 |
16mm |
220V/50Hz |
3.17, 4, 5 |
16 |
0.15 |
2900 |
|
OSR4820 |
20mm |
220V/50Hz |
3.17, 4, 5 |
18 |
0.16 |
2900 |
|
OSR4825 |
25mm |
220V/50Hz |
3.17, 4, 5 |
20 |
0.18 |
2900 |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness can be according to customers requirement. |
||||||
