> Shaded pole motor

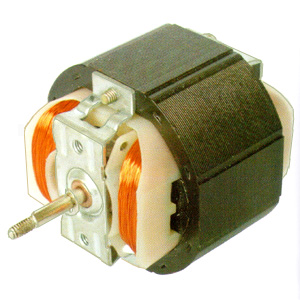

58 Shaded pole motors,Fan motors,Single phase motor,AC Electric motor,Electrical motors,Induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 54x55mm
- Customers can customize parameter
- Product description: OSR-58 electric motor is shaded pole motor,single phase fan motors, used in: mini fan, exhaust fan, fan heater, humidifier, condenser /refrigerator, air purifier, convection oven, electric oven; xeran
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF ELECTRIC MOTOR
OSR-58 series are single-phase-motors, shaded pole motors,induction ac motors. The electric motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in: mini fan, exhaust fan, fan-heater, humidifier, condenser/refrigerator, air purifier, convection oven, electric oven; xerantic equipment, coffee maker, massager, electric knife; footbath machine, ice making machine, and other household appliances etc.
3. Stator dimensions: 54x55mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose alloy bracket, or iron bracket.
5. EXAMPLE PARAMETER
|
Model |
Steel-sheet thickness (mm) |
Voltage Frequency (V /Hz) |
Shaft Diameter (mm) |
No-load performance |
||
|
Power(W) |
Current(A) |
Speed(RPM) |
||||
|
10mm |
220V/50Hz |
4 or 5 |
12 |
0.09 |
2900 |
|
|
OSR5812 |
12mm |
220V/50Hz |
4 or 5 |
14 |
0.10 |
2900 |
|
OSR5816 |
16mm |
220V/50Hz |
4 or 5 |
16 |
0.13 |
2900 |
|
OSR5820 |
20mm |
220V/50Hz |
4 or 5 |
17 |
0.15 |
2900 |
|
OSR5825 |
25mm |
220V/50Hz |
4 or 5 |
19 |
0.17 |
2900 |
|
OSR5830 |
30mm |
220V/50Hz |
4 or 5 |
22 |
0.18 |
2900 |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness can be according to customers requirement. |
||||||
RELATED PRODUCTS
-

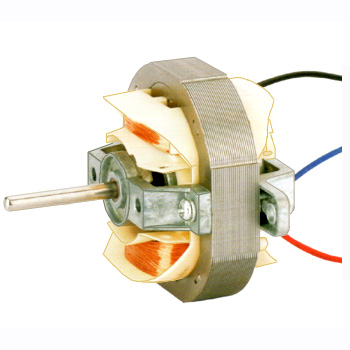

48 Shaded pole motors,Fa
OSR-48 electric motors are single phase shaded pole motors,AC ...
-

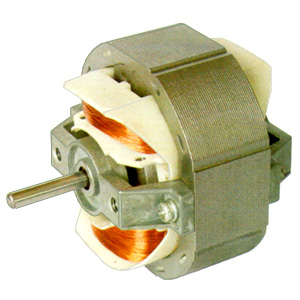

60 Shaded pole motors,Fa
