> Shaded pole motor

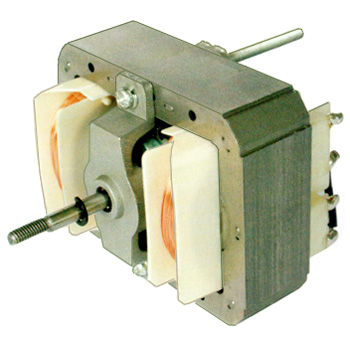

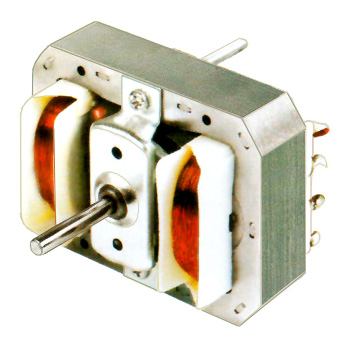

68/84 Shaded pole motors,Fan motors,Single phase motor,AC Electric motor,Electrical motors,Induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 68x84mm
- Customers can customize motors
- Product description: OSR-68/84 electric motor is single phase shaded pole motors, the electrical motors have advantages of small vibration, low noise.The induction motors are used in household appliances ( exhaust fan, ve
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF ELECTRICMOTOR
OSR-68/84 series are shaded pole motors, single phase motor,ac INDUCTION MOTOR. The ELECTRIC MOTORs have advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in: exhaust fan, ventilator, range hood /smoke extractor, xerantic equipment, and other household appliances etc.
2. TECHNICAL FEATURES OF 68/84 MOTOR
3. Stator dimensions: 68x84mm
3. ORDER NOTICE
When customer inquiry or order the electricmotors, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose alloy bracket, or iron bracket.

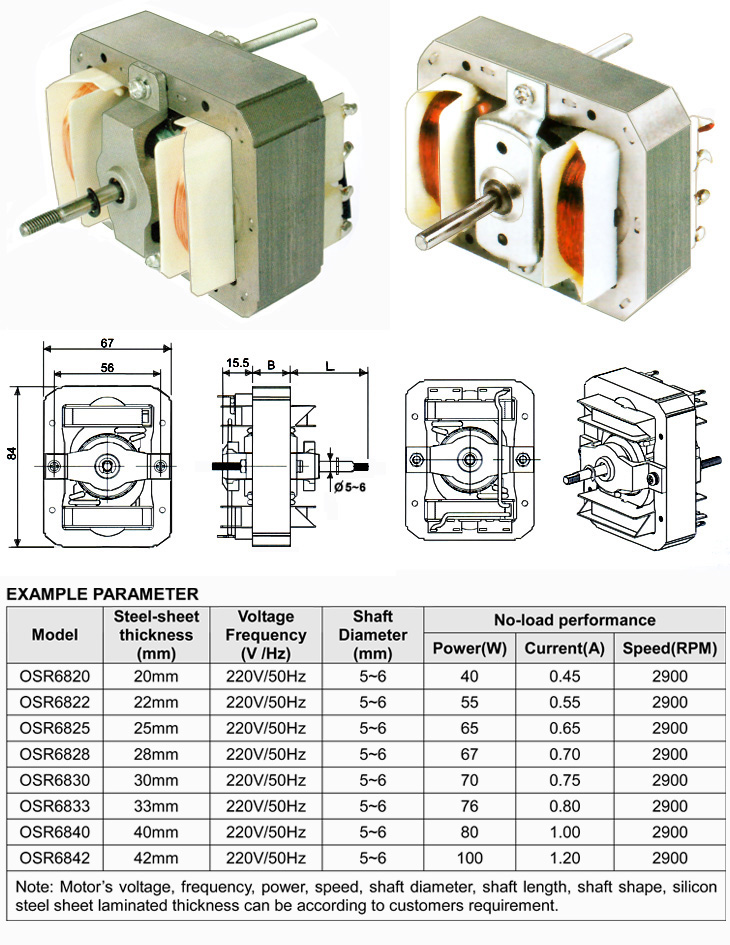

5. EXAMPLE PARAMETER
|
Model |
Steel-sheet thickness (mm) |
Voltage Frequency (V /Hz) |
Shaft Diameter (mm) |
No-load performance |
||
|
Power(W) |
Current(A) |
Speed(RPM) |
||||
|
20mm |
220V/50Hz |
5~6 |
40 |
0.45 |
2900 |
|
|
OSR6822 |
22mm |
220V/50Hz |
5~6 |
55 |
0.55 |
2900 |
|
OSR6825 |
25mm |
220V/50Hz |
5~6 |
65 |
0.65 |
2900 |
|
OSR6828 |
28mm |
220V/50Hz |
5~6 |
67 |
0.70 |
2900 |
|
OSR6830 |
30mm |
220V/50Hz |
5~6 |
70 |
0.75 |
2900 |
|
OSR6833 |
33mm |
220V/50Hz |
5~6 |
76 |
0.80 |
2900 |
|
OSR6840 |
40mm |
220V/50Hz |
5~6 |
80 |
1.00 |
2900 |
|
OSR6842 |
42mm |
220V/50Hz |
5~6 |
100 |
1.20 |
2900 |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness can be according to customers requirement. |
||||||
