> Shaded pole motor

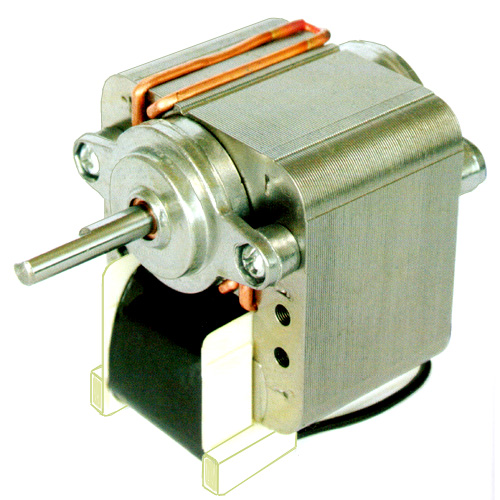

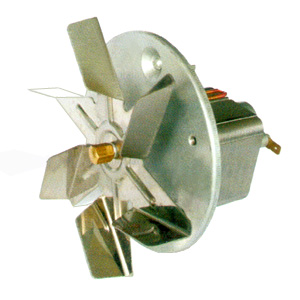

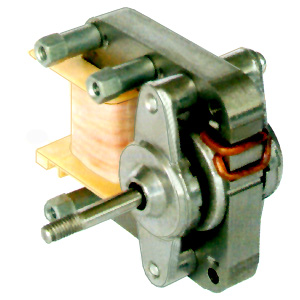

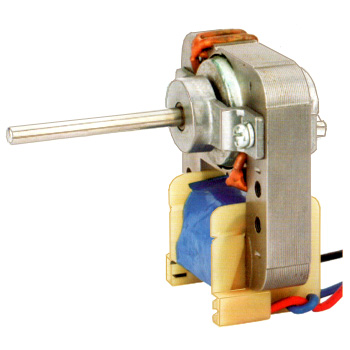

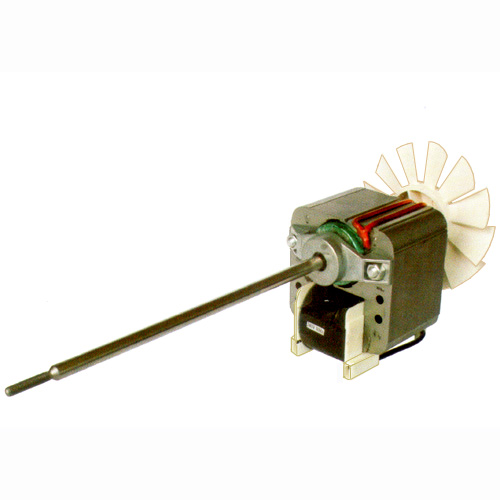

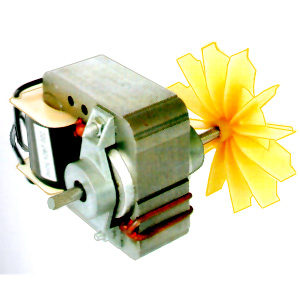

60 Shaded pole motors,Fan motors,Single phase motor,AC Electric motor,Electrical motors,Induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 60x60.5mm
- Customers can customize size
- Product description: OSR-60 electric motors are shaded pole motors,fan motors.The single phase motors can be used such as: exhaust fan, fan-heater, humidifier, condenser /refrigerator, air purifier, light wave oven, elect
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION 60 single phase motor
OSR-60 series are single-phase shaded pole motors, the ac motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The ELECTRIC MOTORs are used in: exhaust fan, fan-heater, humidifier, condenser/refrigerator, air purifier, light wave oven, electric oven; xerantic equipment, coffee maker, massager, electric knife, and other household appliances etc.

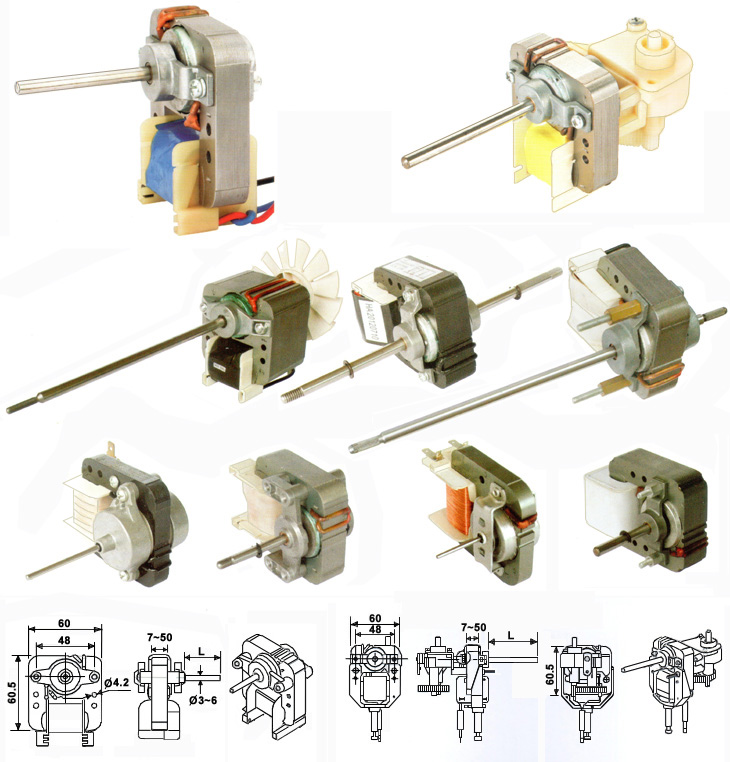

3. Stator dimensions: 60x60.5mm
3. ORDER NOTICE
When customer inquiry or order the INDUCTION MOTORs, please specify the electric motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose alloy bracket, or iron bracket.

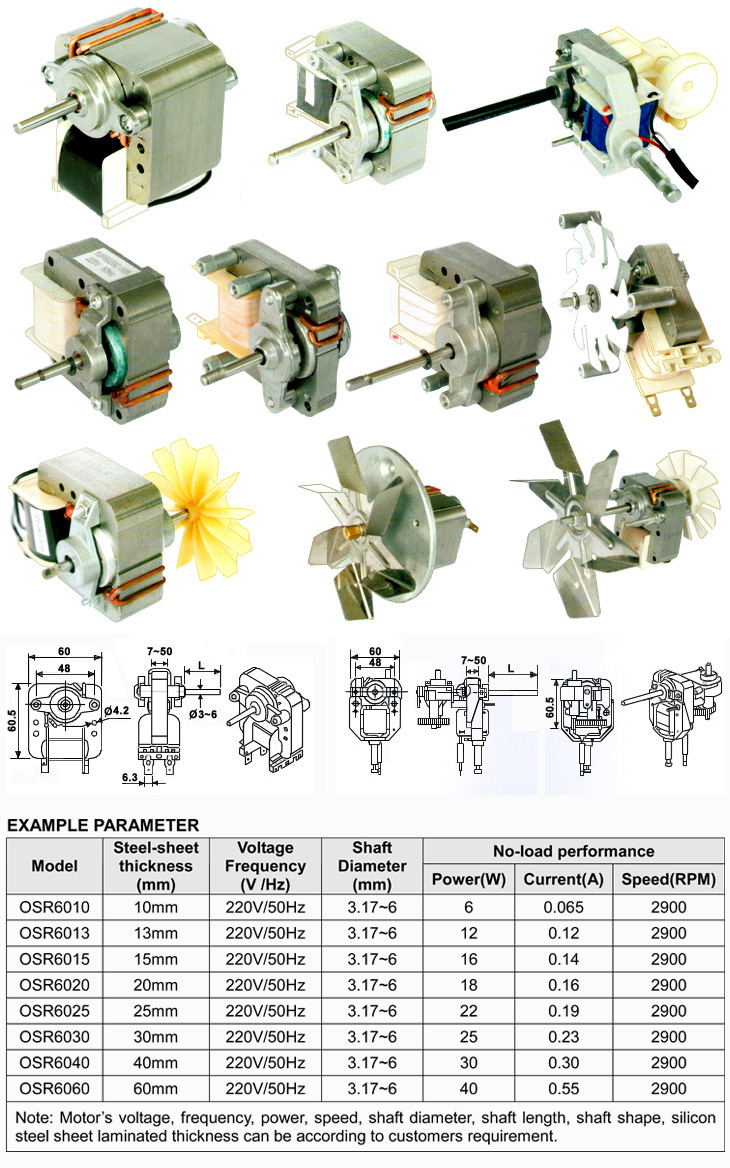

5. EXAMPLE PARAMETER
|
Model |
Steel-sheet thickness (mm) |
Voltage Frequency (V /Hz) |
Shaft Diameter (mm) |
No-load performance |
||
|
Power(W) |
Current(A) |
Speed(RPM) |
||||
|
10mm |
220V/50Hz |
3.17~6 |
6 |
0.065 |
2900 |
|
|
OSR6013 |
13mm |
220V/50Hz |
3.17~6 |
12 |
0.12 |
2900 |
|
OSR6015 |
15mm |
220V/50Hz |
3.17~6 |
16 |
0.14 |
2900 |
|
OSR6020 |
20mm |
220V/50Hz |
3.17~6 |
18 |
0.16 |
2900 |
|
OSR6025 |
25mm |
220V/50Hz |
3.17~6 |
22 |
0.19 |
2900 |
|
OSR6030 |
30mm |
220V/50Hz |
3.17~6 |
25 |
0.23 |
2900 |
|
OSR6040 |
40mm |
220V/50Hz |
3.17~6 |
30 |
0.30 |
2900 |
|
OSR6060 |
60mm |
220V/50Hz |
3.17~6 |
40 |
0.55 |
2900 |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness can be according to customers requirement. |
||||||
