> Household appliance motor

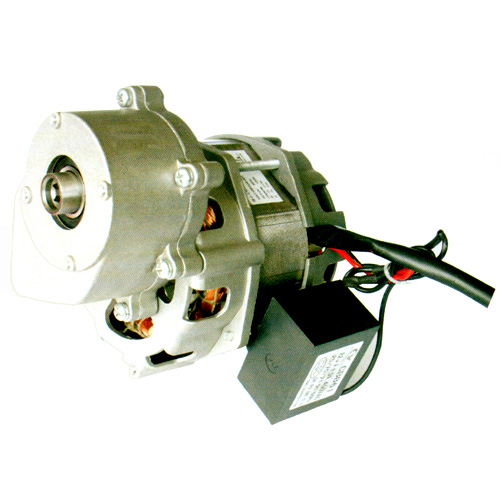

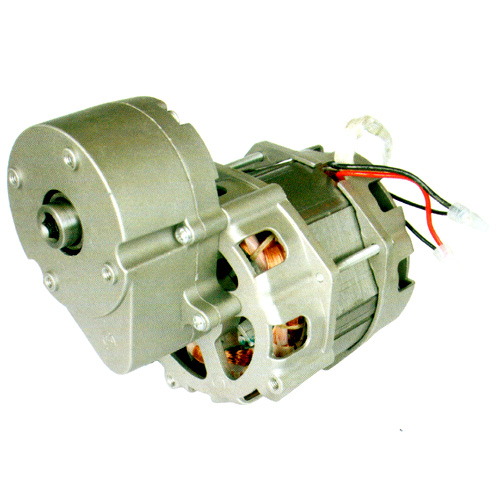

C110 Household Appliance Motor,Industrial motors,Single phase motor,AC Electric motor,Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/2,1/5,1/12,1/15 HP
- Customers can customize parameter
- Product description: C110 series electric motors are single phase motors,capacitor motor. The ac electric motors are used in: Extract oil machine, Industrial machines, etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C110 ELECTRICMOTOR
C110 series are single-phase capacitor motors, the INDUCTION MOTORs have advantages of high efficiency, reasonable structure, small vibration and low noise.
The ac motors are used in Extract oil machine, and Industrial machines, etc.
3. Out-power: 1/2, 1/5, 1/12, 1/15 HP
3. ORDER NOTICE
When customer inquiry or order the ELECTRIC MOTOR, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF ELECTRIC MOTOR (100V,115V,220V,230V)
|
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
|
1/15 |
100 |
0.51 |
1350 |
0.40 |
CW/CCW |
4.33” |
0.472” |
|
1/12 |
115 |
0.55 |
1350 |
0.70 |
CW/CCW |
4.33” |
0.472” |
|
1/5 |
230 |
0.70 |
1350 |
1.23 |
CW/CCW |
4.33” |
0.669” |
|
1/2 |
220 |
1.80 |
1350 |
1.78 |
CW/CCW |
4.33” |
0.669” |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
|||||||
