> Household appliance motor

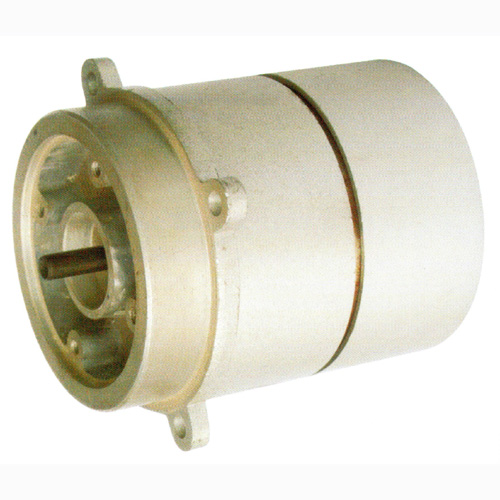

C70 Household Appliance Motor,Massager motors, Single phase motor,AC Electric motor, Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/49,1/74,1/92,1/147 HP
- Customers can customize parameter
- Product description: C70 electric motors are single phase capacitor motors.The electrical motors are used in Massager.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C70 ELECTRIC MOTOR
C70 series are massager motors,single-phase-motor,and capacitor motors. The electric motor has advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in Massager.
3. Out-power: 1/49 HP, 1/74 HP, 1/92 HP, 1/147 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF ELECTRIC MOTOR (100V,115V,220V,230V)
|
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
|
100 |
0.060 |
3000 |
0.016 |
CW/CCW |
2.83” |
0.315” |
|
|
1/92 |
115 |
0.085 |
2880 |
0.026 |
CW/CCW |
2.83” |
0.315” |
|
1/74 |
230 |
0.051 |
2450 |
0.039 |
CW/CCW |
2.83” |
0.315” |
|
1/49 |
220 |
0.170 |
3200 |
0.045 |
CW/CCW |
2.83” |
0.315” |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
|||||||
