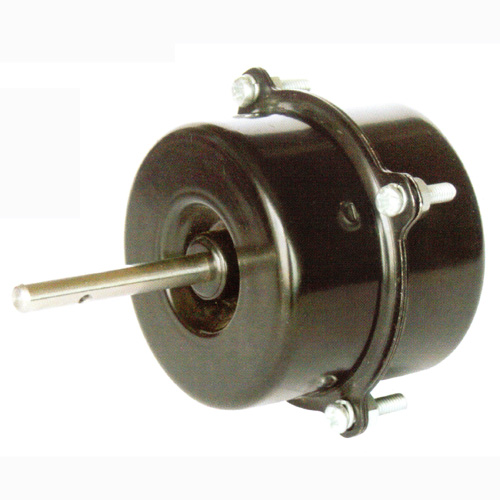

C58 Household Appliance Motor,Fan motors,Single phase motor, AC Electric motor,Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/740,1/245,1/147 HP
- Customers can customize parameter
- Product description: C58 electric motors are single phase capacitor motors.The electric motor are used in exhaust fan, heater fan,air purifier,etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C58 ELECTRIC MOTOR
C58 series are single-phase motor,capacitor motors,also ac fan motor and air purifier motor. The electric motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in exhaust fan, heater fan, air purifier, etc.
3. Out-power: 1/740 HP, 1/245 HP, 1/147 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the single phase motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose steel bracket, casting bracket
3. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE ELECTRIC-MOTOR PARAMETER (100V,120V,220V)
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
120 |
0.046 |
3000 |
0.003 |
CW/CCW |
2.28” |
0.125” |
|
1/245 |
100 |
0.176 |
2750 |
0.010 |
CW/CCW |
2.28” |
0.196” |
1/147 |
220 |
0.126 |
2400 |
0.020 |
CW/CCW |
2.28” |
0.196” |
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
