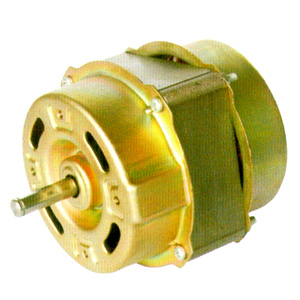

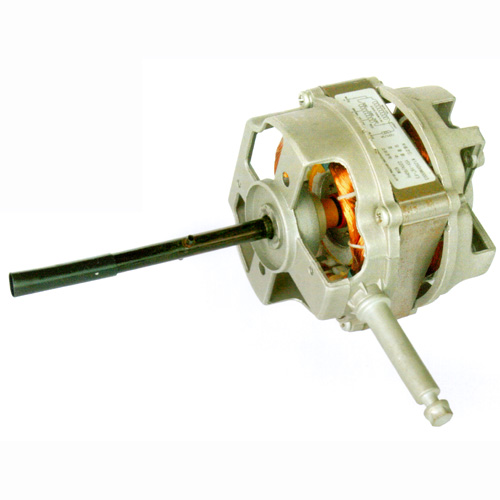

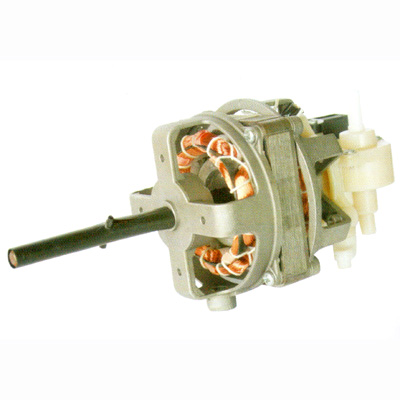

C75 Household Appliance Motor, Fan motors, Single phase motor, AC Electric motor, Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/30,1/36,1/49,1/147 HP
- Customers can customize parameter
- Product description: C75 series electric motors are single phase ac capacitor motors.The induction motors are used in "Cooling fan" and "Bread making machine", etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C75 ELECTRIC MOTOR
C75 series are capacitor motors, single-phase motor; also are fan motor or bread machine motor. The electric motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The ac motors are used in Cooling fan, Bread making machine, etc.
3. Out-power: 1/30 HP, 1/36 HP, 1/49 HP, 1/147 HP
3. ORDER NOTICE
When customer inquiry or order the INDUCTION MOTORs, please specify the electric-motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose steel cover, or aluminum cover
3. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF ELECTRIC MOTOR (100V,120V,220V)
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
100 |
0.057 |
1400 |
0.034 |
CW/CCW |
2.95”x2.95” |
0.315” |
|
1/49 |
220 |
0.079 |
1300 |
0.110 |
CW/CCW |
2.95”x2.95” |
0.315” |
1/36 |
120 |
0.193 |
1480 |
0.132 |
CW/CCW |
2.95”x2.95” |
0.315” |
1/30 |
230 |
0.127 |
1350 |
0.177 |
CW/CCW |
2.95”x2.95” |
0.315” |
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
