> Household appliance motor

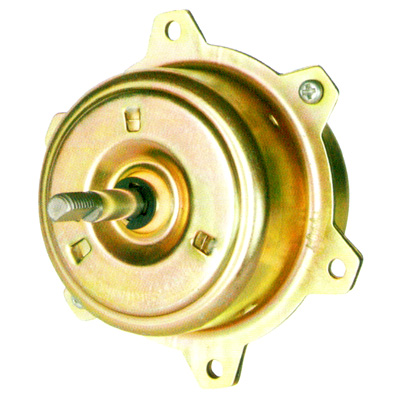

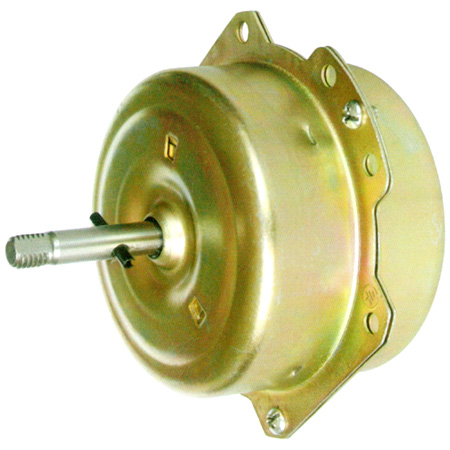

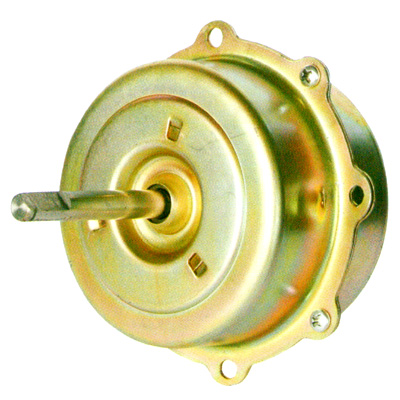

C78 Household Appliance Motor, Fan motors, Single phase motor, AC Electric motor, Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/49,1/74,1/92,1/147 HP
- Customers can customize parameter
- Product description: C78 series electric motor is single phase motor and capacitor motor.The ac motor is used in exhaust fan,air purifier,etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C78 ELECTRIC MOTOR
C78 series are single-phase capacitor motors, also are fan motors or are purifier motors. the INDUCTION MOTORs have advantages of high efficiency, reasonable structure, small vibration and low noise.
The single phase motor is used in exhaust fan, air purifier, etc.
3. Out-power: 1/49 HP, 1/74 HP, 1/92 HP, 1/147 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the electrical-motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF electrical motors (100V,115V,220V,230V)
|
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
|
100 |
0.060 |
3000 |
0.016 |
CW/CCW |
3.19” |
0.315” |
|
|
1/92 |
115 |
0.085 |
2880 |
0.026 |
CW/CCW |
3.19” |
0.315” |
|
1/74 |
230 |
0.051 |
2450 |
0.039 |
CW/CCW |
3.19” |
0.315” |
|
1/49 |
220 |
0.170 |
3200 |
0.045 |
CW/CCW |
3.19” |
0.315” |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
|||||||
