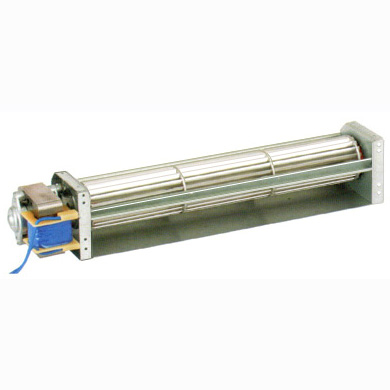

Fan40 Cross-flow Fans ( with fan motors )

1. PRODUCT INTRODUCTION

FAN40 series are cross-flow fan with single phase motor, the fans have advantages of reasonable structure, small vibration and low noise.

The cross-flow-fans are used in: Fan-heater, Electric heater, Electric fireplace, Electric oven, Baking chamber, Freezer, etc.

2. TECHNICAL FEATURES

1. Voltage: 36~240 AVC

2. Frequency: 50Hz, 60Hz

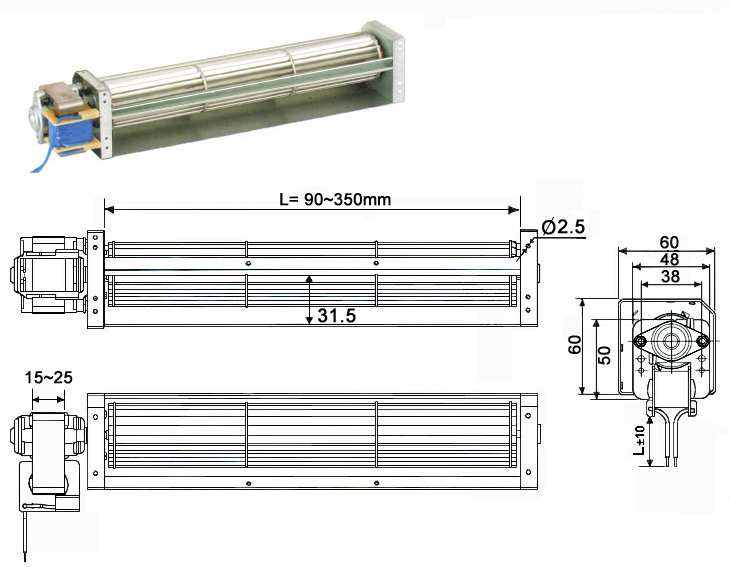

3. Stator dimensions: 50x48mm

4. Stator thickness: 10~25mm

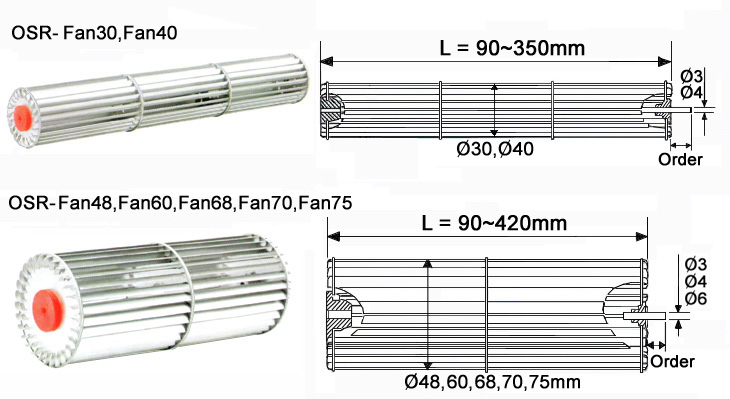

5. Wind wheel dimensions: 40mm diameter, 260mm length, can be customized 90~350mm length.

3. ORDER NOTICE

When customer inquiry or order the cross-flow-fans with electric-motors, please specify the cross-flow-fans and motor’s parameter (including voltage, frequency, power, speed, wind wheel length, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
