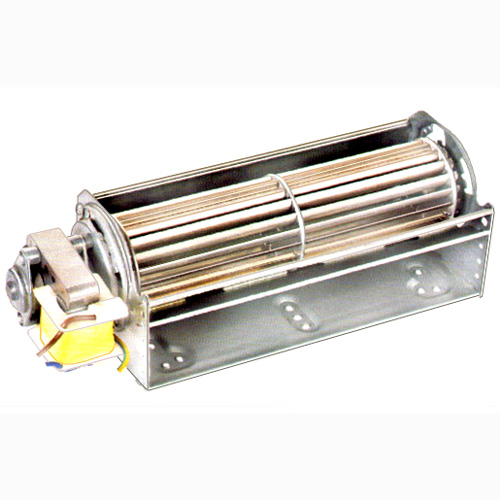

Fan48 Cross-flow Fans ( with fan motors )

1. PRODUCT INTRODUCTION

FAN48 series are cross-flow-fan with single-phase-motor, the fans have advantages of reasonable structure, small vibration and low noise.

The cross-flow-fans are used in: Fan-heater, Electric heater, Electric fireplace, Electric oven, Baking chamber, Freezer, etc.

2. TECHNICAL FEATURES

1. Voltage: 36~240 AVC

2. Frequency: 50Hz, 60Hz

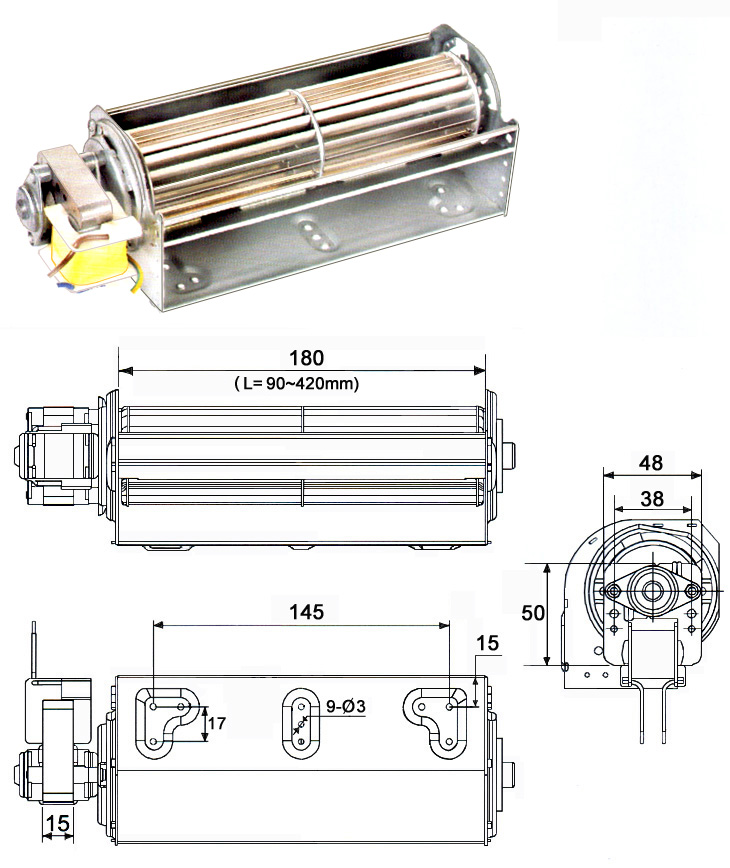

3. Stator dimensions: 50x48mm

4. Stator thickness: 8~30mm

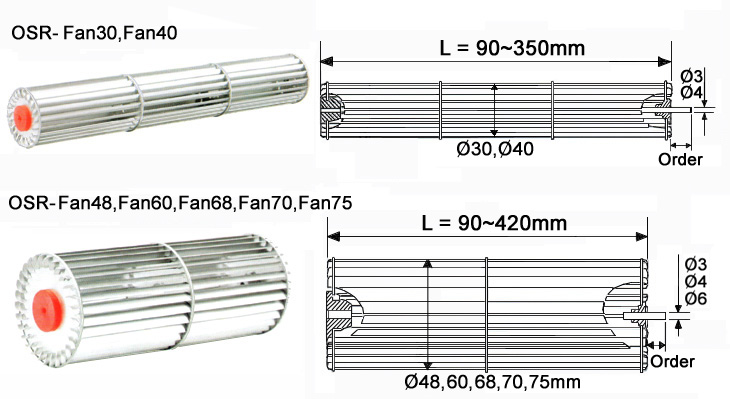

5. Wind wheel dimensions: 48mm diameter, 180mm length, can be customized 90~420mm length.

3. ORDER NOTICE

When customer inquiry or order the  cross-flow-fan with electric motors, please specify the cross-flow-fan and single phase motor’s parameter (including voltage, frequency, power, speed, wind wheel length, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
