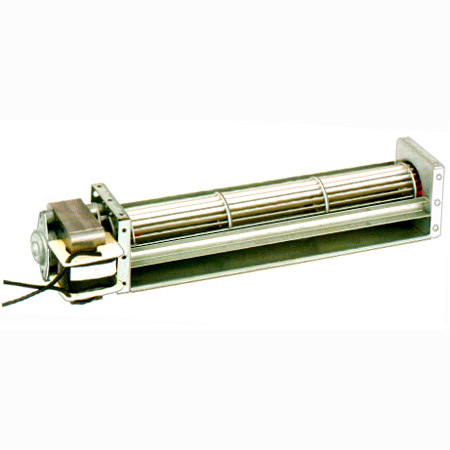

Fan30 Cross-flow Fans ( with fan motors )

1. PRODUCT INTRODUCTION

FAN30 series are cross-flow fan with single-phase-motor, the fans have advantages of reasonable structure, small vibration and low noise.

The fans are used in: Fan-heater, Electric heater, Electric fireplace, Electric oven, Baking chamber, Freezer, etc.

2. TECHNICAL FEATURES

1. Voltage: 36~240 AVC

2. Frequency: 50Hz, 60Hz

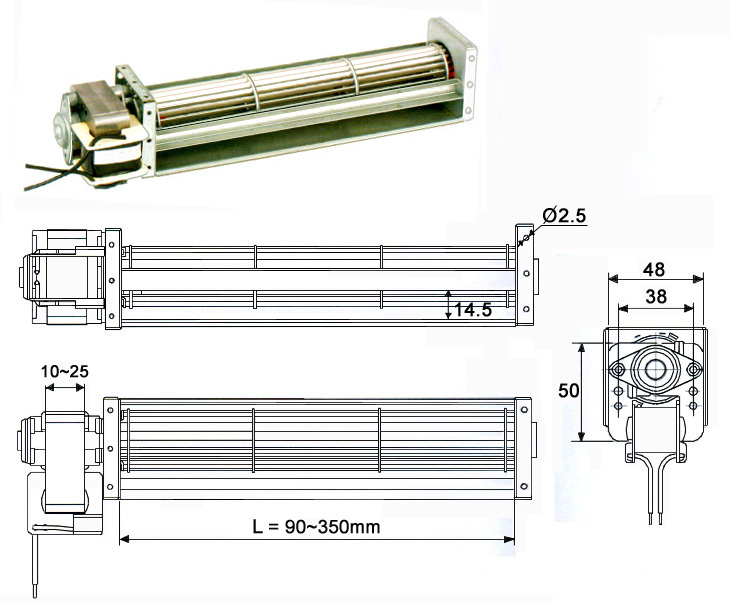

3. Stator dimensions: 50x48mm

4. Stator thickness: 10~25mm

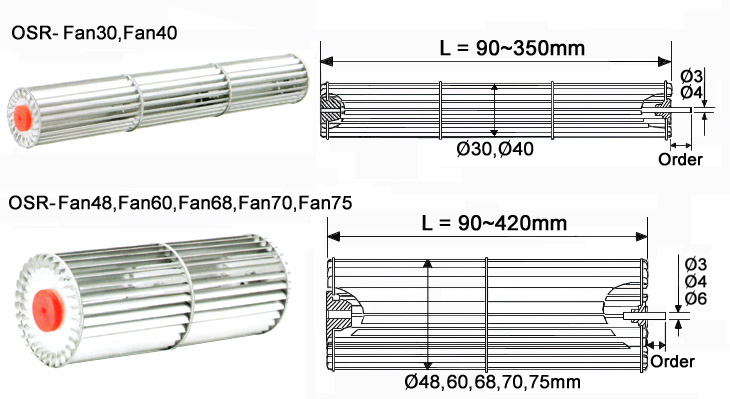

5. Wind wheel dimensions: 30mm diameter, 200mm length, can be customized 90~350mm length.

3. ORDER NOTICE

When customer inquiry or order the fan with ELECTRIC MOTORs, please specify the fan and motor’s parameter (including voltage, frequency, power, speed, wind wheel length, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
