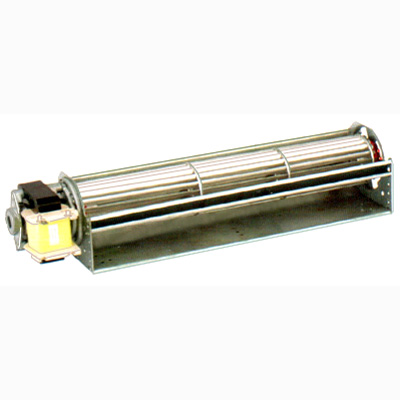

Fan48B Cross-flow Fans ( with fan motors )

1. PRODUCT INTRODUCTION

FAN48B series are single-phase cross-flow fan. The cross-flow-fans have advantages of reasonable structure, small vibration and low noise.

The fans are used in: Fan-heater, Electric heaters, Electric fireplace, Electric ovens, Baking chamber, Freezers, etc.

2. TECHNICAL FEATURES

1. Voltage: 36~240 AVC

2. Frequency: 50Hz, 60Hz

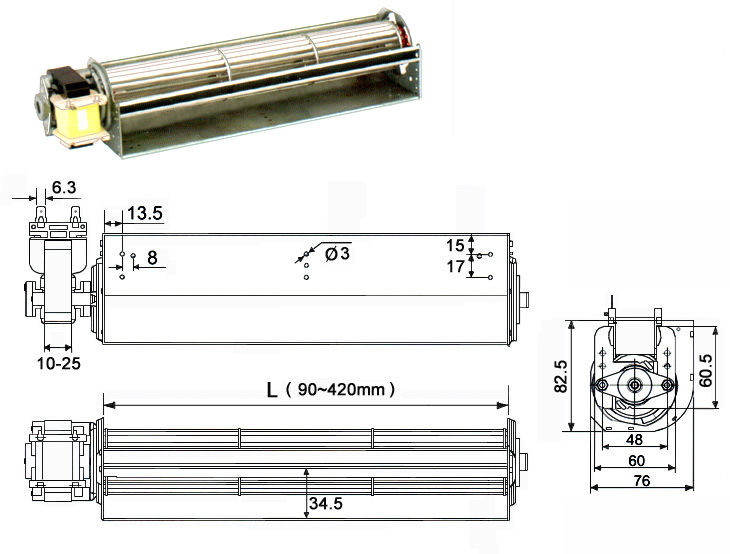

3. Stator dimensions: 60x60.5mm

4. Stator thickness: 10~25mm

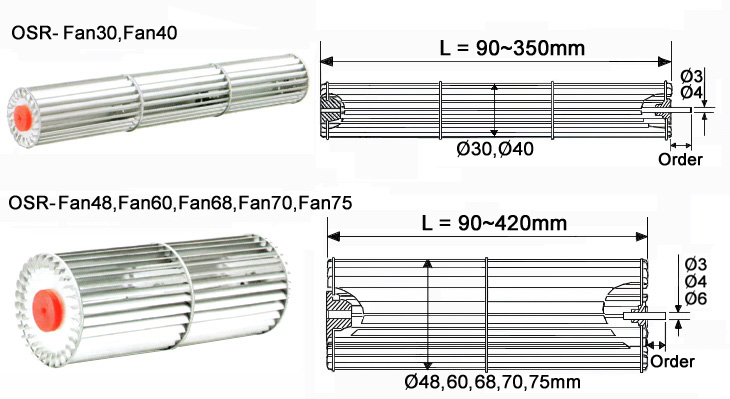

5. Wind wheel dimensions: 48mm diameter, 300mm length, can be customized 90~420mm length.

3. ORDER NOTICE

When customer inquiry or order the cross-flow-fans, please specify the cross-flow-fans and single phase motor’s parameter (including voltage, frequency, power, speed, wind wheel length, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
