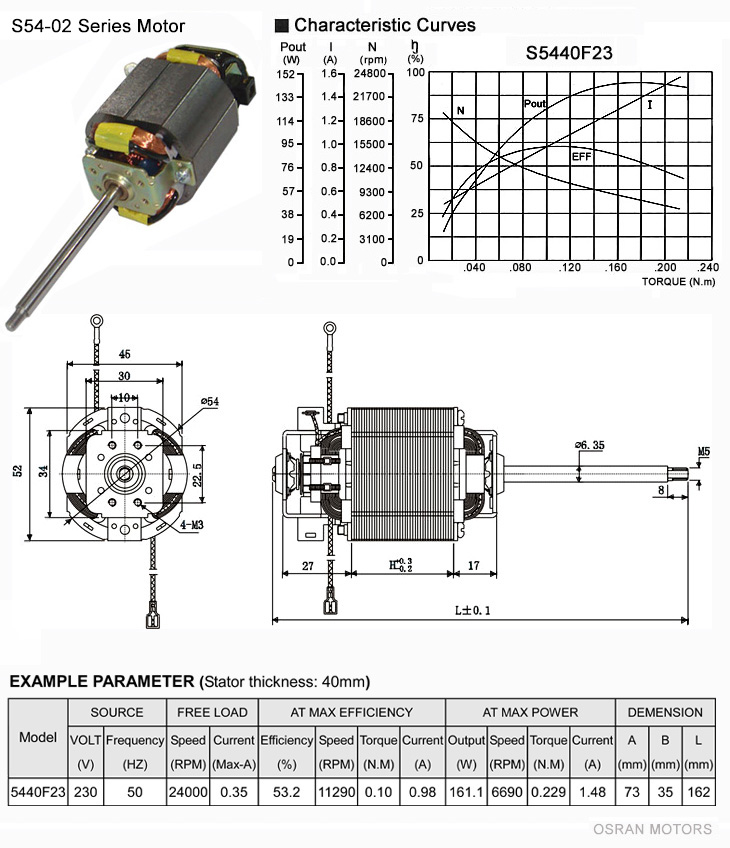

S54-02 Universal motors,single phase motor, electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize size
- Product description: S54-02 electric motor are single phase universal electrical motor,series motors,the induction motor has advantage of high starting torque, The AC motors are used in Soybeab milk machines,Ice crusher,J
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54-02 ELECTRIC MOTOR
S54-02 series are single-phase universal motor,series motors,ac motor,INDUCTION MOTORs.The electric motors have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motors are used in: Soybeab milk machines, Ice crusher, Juicer, Blender, other household appliances etc.
3. Stator dimensions: 52x45mm
4. Stator thickness: 30, 35, 40mm
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
5. EXAMPLE PARAMETER (Stator thickness: 40mm)
Model |
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
5440F23 |
230 |
50 |
24000 |
0.35 |
53.2 |
11290 |
0.10 |
0.98 |
161.1 |
6690 |
0.229 |
1.48 |
73 |
35 |
162 |
