> Universal motor
S54-04 Universal motors,single phase motors, electric motor,electrical motor,ac motors,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize size
- Product description: S54-04 electric motors are single phase universal motors,ac induction motors,the electric motors have high starting torque advantages,small vibration low noise.The electrical motors are used in Ice cr
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54-04 ELECTRIC MOTOR
S54-04 series are single-phase motor,universal motor,series motors and INDUCTION MOTORs. The motors have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motors are used in: Ice crusher, Juicer, Blender,Grinding Machines, other household appliances etc.
3. Stator dimensions: 52x45mm
4. Stator thickness: 10~40mm
3. ORDER NOTICE
When customer inquiry or order the electrical motors, please specify the electric motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

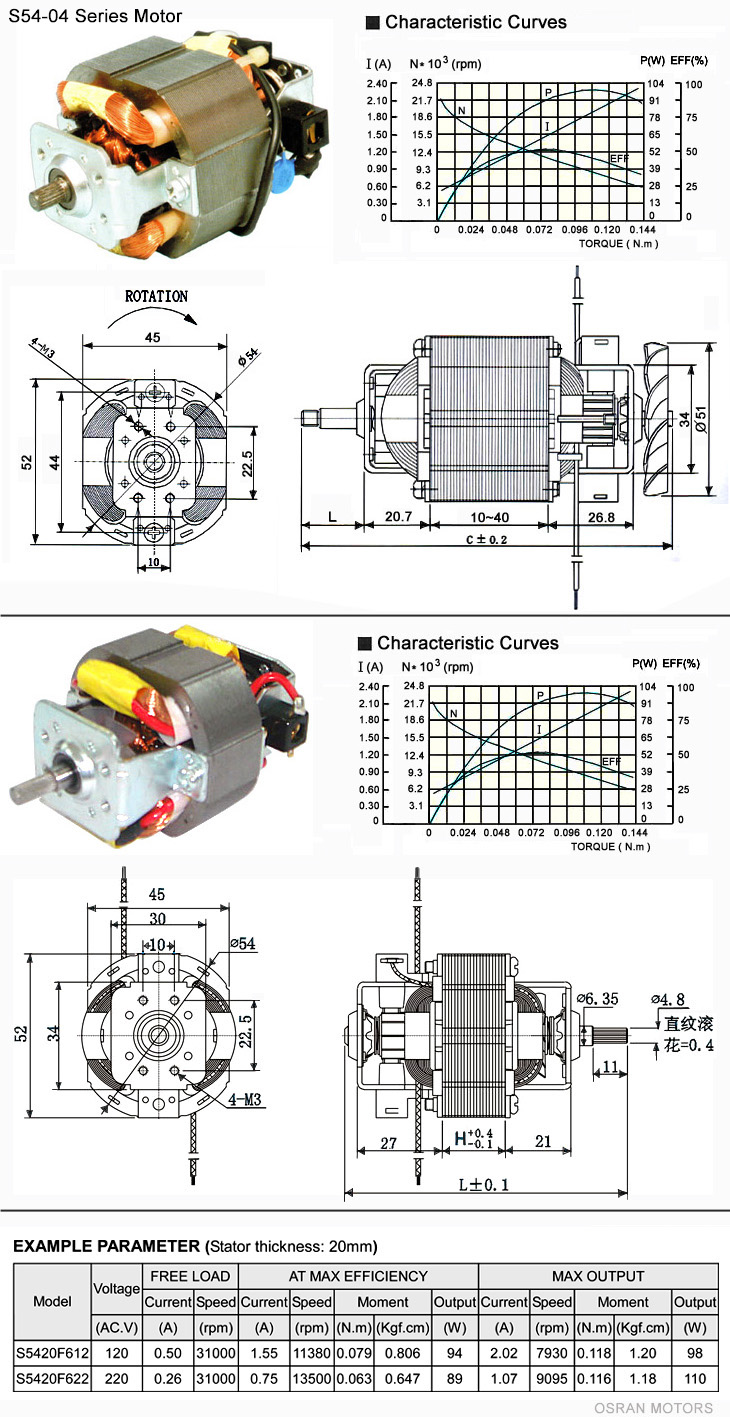

5. EXAMPLE PARAMETER (Stator thickness: 20mm)
|
Voltage |
FREE LOAD |
AT MAX EFFICIENCY |
MAX OUTPUT |
||||||||||
|
Current |
Speed |
Speed |
Moment |
Output |
Current |
Speed |
Moment |
Output |
|||||
|
(AC.V) |
(A) |
(rpm) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
|
|
S5420F612 |
120 |
0.50 |
31000 |
1.55 |
11380 |
0.079 |
0.806 |
94 |
2.02 |
7930 |
0.118 |
1.20 |
98 |
|
S5420F622 |
220 |
0.26 |
31000 |
0.75 |
13500 |
0.063 |
0.647 |
89 |
1.07 |
9095 |
0.116 |
1.18 |
110 |
