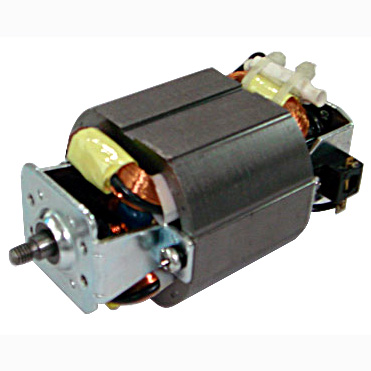

S54-01 Universal motors,single phase motor, electric motor,electrical motors,ac induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize size
- Product description: S54 electric motor is single phase universal motor,series motors,the electric motor has advantages of high starting torque,reasonable structure, small vibration and low noise.The induction motor are u
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54 ELECTRIC MOTOR
S54-01 series are universal motor,series motors,serial excite motors,single phase motor,and ac INDUCTION MOTOR. The electric motors have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motors are used in: Blenders, Slush Machine,Cuisine Machine, Ice crusher,Juicer,other household appliances etc.
4. Stator thickness: 30, 35, 40mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

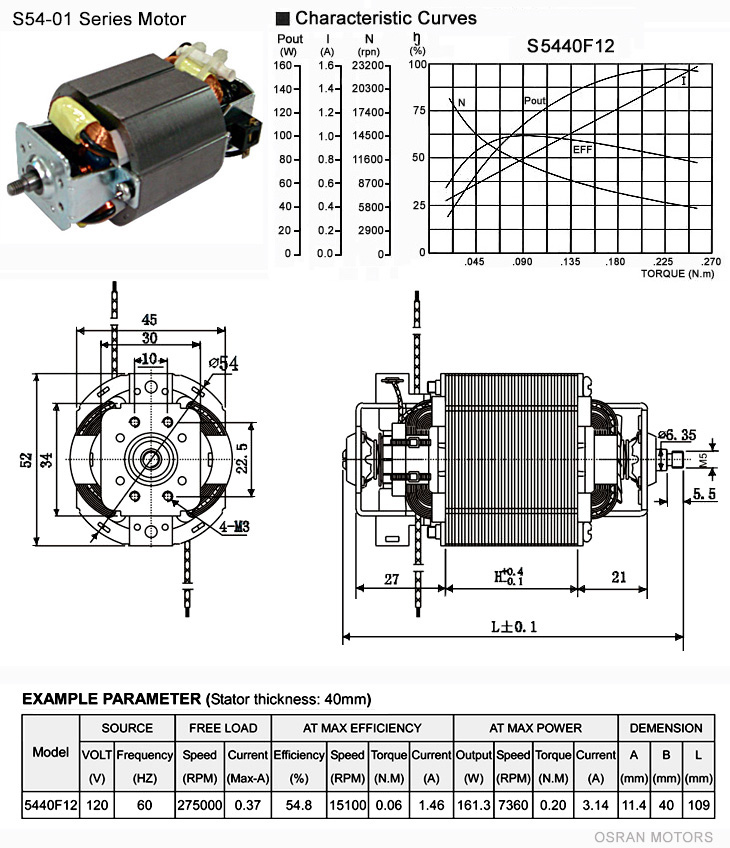

5. EXAMPLE PARAMETER (Stator thickness: 40mm)
Model |
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
5440F12 |
120 |
60 |
275000 |
0.37 |
54.8 |
15100 |
0.06 |
1.46 |
161.3 |
7360 |
0.20 |
3.14 |
11.4 |
40 |
109 |
