> Universal motor

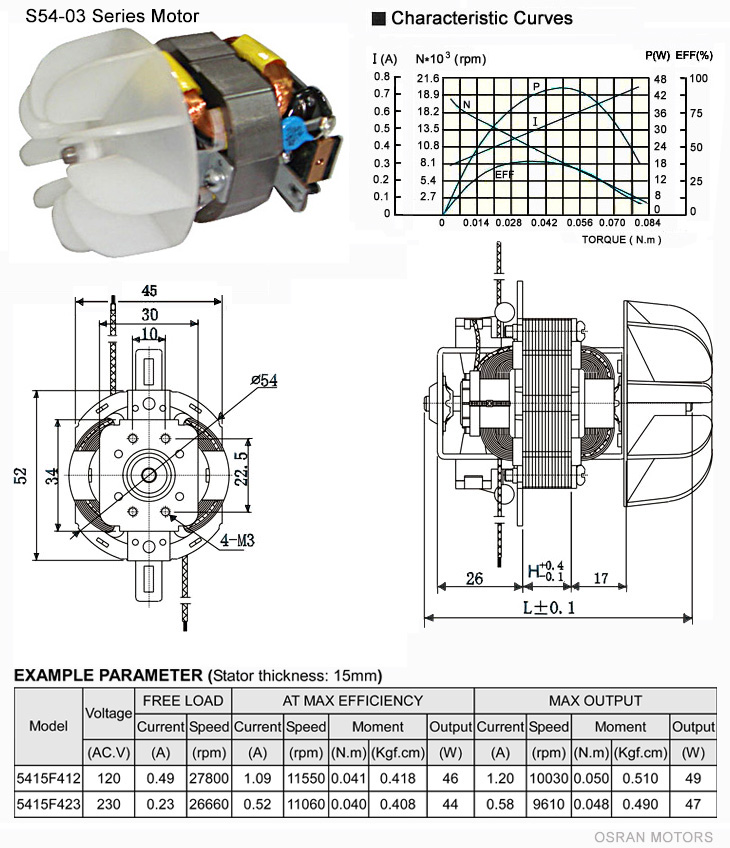

S54-03 Universal motors,single phase motors, electric motor,electrical motors,ac motor,induction motors
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize size
- Product description: S54-03 electric motor is single phase universal motor,series motors,the electrical motors have advantages of high starting torque,small vibration and low noise.The AC induction motors are used in Hair
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54-03 ELECTRIC MOTOR
S54-03 series are universal motor,series motors,single-phase ac motor.The INDUCTION MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motors are used in: Hair dryer, Fan machines, other household appliances etc.
3. Stator dimensions: 52x45mm
4. Stator thickness: 12, 15, 17, 20mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electric motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
5. EXAMPLE MOTOR PARAMETER (Stator thickness: 15mm)
|
Voltage |
FREE LOAD |
AT MAX EFFICIENCY |
MAX OUTPUT |
||||||||||
|
Current |
Speed |
Speed |
Moment |
Output |
Current |
Speed |
Moment |
Output |
|||||
|
(AC.V) |
(A) |
(rpm) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
|
|
5415F412 |
120 |
0.49 |
27800 |
1.09 |
11550 |
0.041 |
0.418 |
46 |
1.20 |
10030 |
0.050 |
0.510 |
49 |
|
5415F423 |
230 |
0.23 |
26660 |
0.52 |
11060 |
0.040 |
0.408 |
44 |
0.58 |
9610 |
0.048 |
0.490 |
47 |
