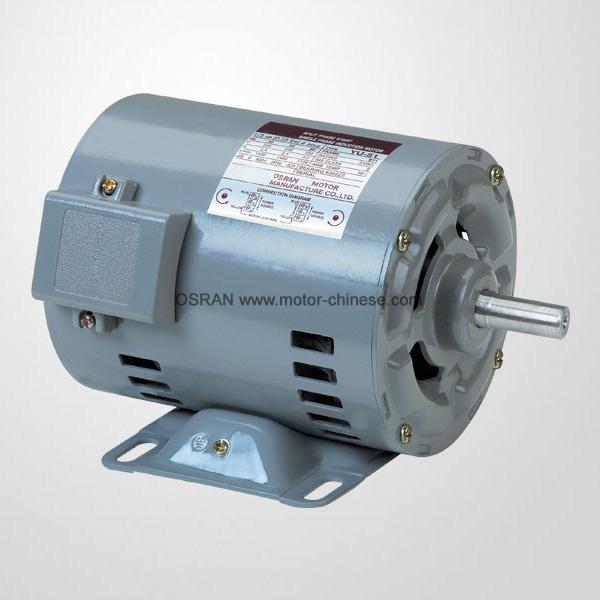

Series 51 Fractional Motor, Single phase motor, Induction motor
- Execution standard: IEC
- Voltage,Frequency: 110V/220V380V, 50Hz/60Hz
- Rated power: 1/6HP,1/3HP,1/2HP,3/4HP
- Used in: compressor, pump, fan, refrigeration, medical equipment and small machinery
- Product description: The electric motors are ac motor,induction motor,widely used in compressor,pump,fan,refrigeration,medical equipment and small machinery, etc..
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF INDUCTION MOTOR
1. The induction motor is single-phase-motor or three-phase-motor.The electric-motors have advantages of enough horsepower, less temperature rise,low vibration, low noise, small size, light weight, convenient maintenance. Total quality control after production to meet the highest standard.
2. The fractional motors are widely used in air compressor, water pump, fan, refrigeration, medical equipment and small machinery, etc..
3. Voltage: 110V, 220V, 380V ac
4. Frequency: 50Hz, 60Hz
5. Rated power: 1/6HP, 1/4HP, 1/3HP, 1/2HP, 3/4HP, 1HP
6. Enclosed protect class: IP24
7. Insulation class: E
8. Cooling method: ODP
9. Operation mode: S1 (continuous running)
Note: If customers have special request for voltage, frequency and other, please mentioned in the inquiry or order, we can customize for some INDUCTION MOTORS .
2. TECHNICAL DATA
Induction motor series 51:
Model |
Rated Power (W) |
Poles |
Voltage (V) |
Speed RPM (50/60Hz) |
Number of phase |
YU-51 |
250(1/3HP) |
4 |
220 |
1450/1750 |
1 |
YS-51 |
370(1/2HP) |
4 |
380 |
1450/1750 |
3 |
