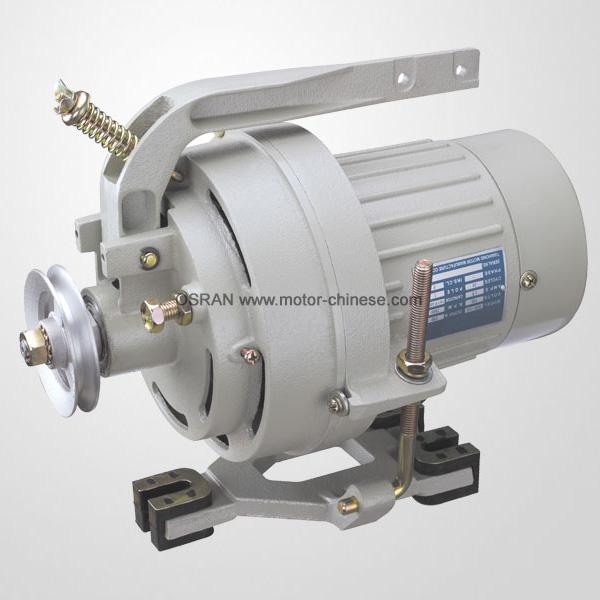

Series 121 Sewing machines motor, Clutch motor,Single phase motor, induction motor
- Execution standard: IEC
- Voltage,Frequency: 110V/220V380V, 50Hz/60Hz
- Rated power: 1/6HP,1/3HP,1/2HP,3/4HP
- Model: DOL, YSL
- Product description: The clutch motors are ac motor,induction motors.The electric motor are widely used in industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equi
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF 121 SEWING MOTORS
1. The INDUCTION MOTOR is designed based on features of high Efficiency(performance) industrial sewing machine.
2. All electrical motors are tested by the complete test to ensure the best quality.
3. Horsepower is enough, less temperature rise, low vibration, low noise,
4. High quality clutch and cork for longer endurance.
5. Lever, Slide base and Brake are easily adjusted.
2. USED OF ELECTRIC MOTORS
1.The electric motor is widely used in: industrial sewing machines, woodworking machinery, grinding machinery, instrument lathe and so on a series of equipment need clutch type power output.

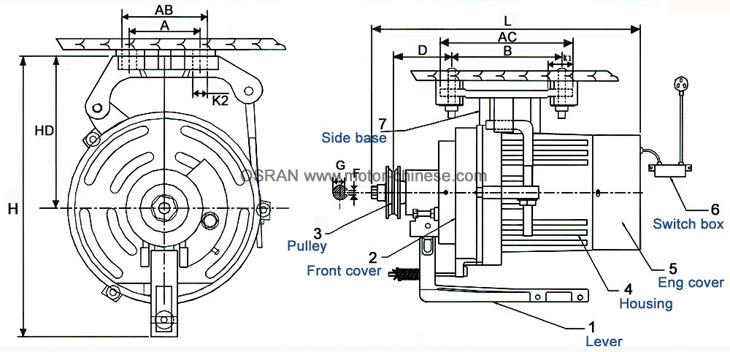

3. MEASUREMENT OF ELECTRIC MOTOR
Clutch motor series 121:
Model
Rated Power (W)
Poles
Voltage (V)
Speed RPM (50/60Hz)
Number of phase
DOL-11
100(1/8HP)
2
220
2850/3450
1
DOL-121
250(1/3HP)
2
220
2850/3450
1
YSL-33R
370(1/2HP)
2
380
2850/3450
3
