> Household appliance motor

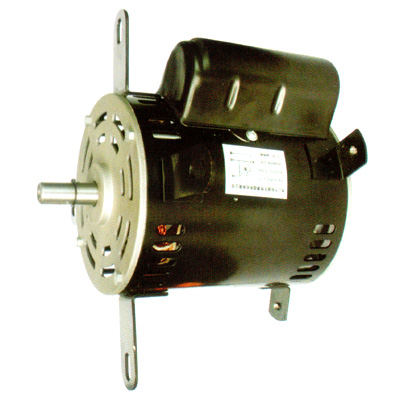

C140 Household Appliance Motor,Single phase motor,AC Electric motor,Fan electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1,3/4,1/2,1/3,1/4,1/5,1/12,1/13 HP
- Customers can customize parameter
- Product description: C140 series electric motors are single phase motors,and capacitor induction motors,have 110v or 220v ac.The electric motors are used in Air condition; Water pump;Industrial fan; and Air blower, etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C140 ELECTRIC MOTOR
C140 series are single-phase capacitor motors, the INDUCTION MOTOR has advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are used in Air condition, Water pump, Industrial fan, and Air blower, etc.
3. Out-power: 1, 3/4, 1/2, 1/3, 1/4, 1/5, 1/12,1/13 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the induction motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF ELECTRIC MOTOR (100V,115V,220V,230V,240V)
|
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
|
1/13 |
220 |
0.63 |
1300 |
0.42 |
CW/CCW |
5.6” |
0.5” |
|
1/12 |
220 |
0.75 |
1450 |
1.30 |
CW/CCW |
5.6” |
0.5” |
|
1/5 |
230 |
1.05 |
1100 |
1.28 |
CW/CCW |
5.6” |
0.5” |
|
1/4 |
240 |
1.70 |
1130 |
1.55 |
CW/CCW |
5.6” |
0.5” |
|
1/3 |
115 |
2.90 |
1020 |
2.80 |
CW/CCW |
5.6” |
0.5” |
|
1/2 |
115 |
3.40 |
1080 |
3.10 |
CW/CCW |
5.6” |
0.5” |
|
3/4 |
230 |
4.70 |
1075 |
4.90 |
CW/CCW |
5.6” |
0.5” |
|
1 |
230 |
4.70 |
1250 |
5.60 |
CW/CCW |
5.6” |
0.5” |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
|||||||
