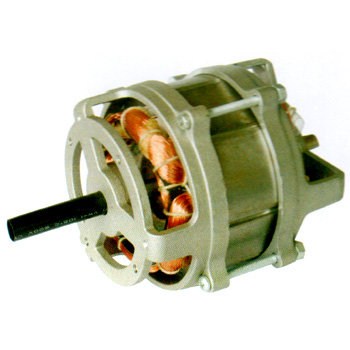

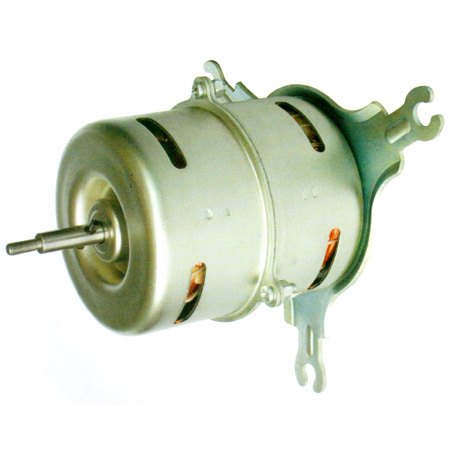

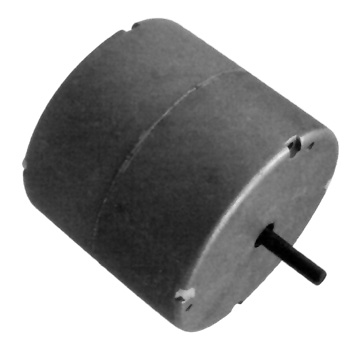

C80 Household Appliance Motor, Single phase motor, AC Electric motor, Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/12,1/15,1/18,1/20,1/25,1/36,1/49 HP
- Customers can customize parameter
- Product description: C80 series electric motor is single phase capacitor motors. The electric motors are used in Air condition motor, Air purifier, Mini washing machine, Humidifier, Xerantic equipment etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C80 ELECTRIC MOTOR
C80 series are single-phase capacitor motors,also named air motor,washing motor,humidifier motor. The motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The motors are used in: Air condition motor, Air purifier, Mini washing machine, Humidifier, Xerantic equipment etc.
3. Out-power: 1/12, 1/15, 1/18, 1/20, 1/25, 1/36, 1/49 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the electro- motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose steel cover, or aluminum cover
3. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF electric motors (100V,115V,220V,230V)
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
100 |
0.181 |
1550 |
0.092 |
CW/CCW |
3.27” |
0.315” |
|
1/36 |
220 |
0.110 |
1300 |
0.150 |
CW/CCW |
3.27” |
0.315” |
1/25 |
230 |
0.149 |
1350 |
0.208 |
CW/CCW |
3.27” |
0.315” |
1/20 |
115 |
0.372 |
1480 |
0.234 |
CW/CCW |
3.27” |
0.315” |
1/18 |
220 |
0.226 |
1300 |
0.301 |
CW/CCW |
3.27” |
0.315” |
1/15 |
220 |
0.248 |
1880 |
0.247 |
CW/CCW |
3.27” |
0.393” |
1/12 |
120 |
0.600 |
1580 |
0.370 |
CW/CCW |
3.27” |
0.393” |
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
