> Household appliance motor

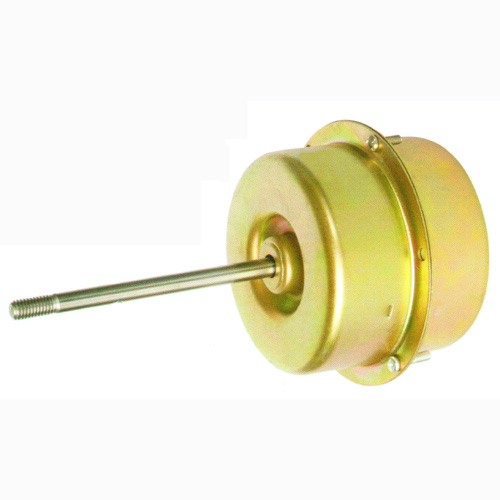

C88 Household Appliance Motor,Fan motors,Single phase motor,AC Electric motor,Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/15,1/24,1/36,1/56,1/184 HP
- Customers can customize parameter
- Product description: C88 series electric motor is capacitor motor,ac motors,and induction motors. The single phase electric motors are used in Fan,Air condition motor;Range hood;Smoke lampblack machine, etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C88 ELECTRIC MOTOR
C88 series are single-phase capacitor motors, the motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The electric motors are fan motor,Air condition motor,they also are used in Range hood,Smoke lampblack machine, etc.
3. Out-power: 1/15, 1/24, 1/36, 1/56, 1/184 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the ac motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose steel cover, or aluminum cover
3. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER OF ELECTRO-MOTOR(115V,220V,230V)
|
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
|
230 |
0.098 |
890 |
0.043 |
CW/CCW |
3.58” |
0.315” |
|
|
1/56 |
220 |
0.069 |
850 |
0.147 |
CW/CCW |
3.58” |
0.315” |
|
1/36 |
220 |
0.109 |
1320 |
0.148 |
CW/CCW |
3.58” |
0.315” |
|
1/24 |
115 |
0.313 |
1550 |
0.189 |
CW/CCW |
3.58” |
0.315” |
|
1/15 |
230 |
0.260 |
1300 |
0.360 |
CW/CCW |
3.58” |
0.315” |
|
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
|||||||
