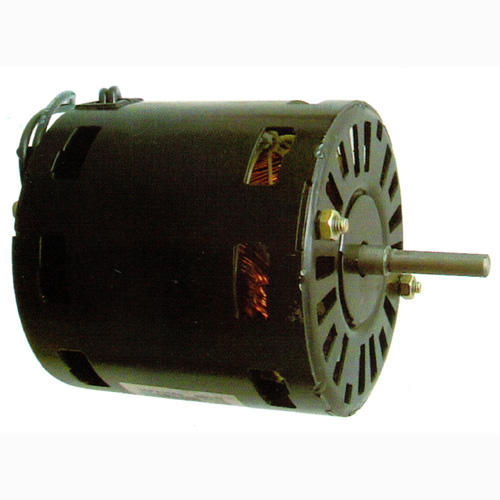

C82 Household Appliance Motor,Fan motors,Single phase motor,AC Electric motor,Electrical motors, Induction motor
- Voltage: 100~230 AVC
- Frequency: 50Hz, 60Hz
- Out-power: 1/12,1/15,1/18,1/20,1/25,1/36,1/49 HP
- Customers can customize parameter
- Product description: C82 series electric motor is single phase motor. The induction motors are used in Fan, Air condition motor, Air purifier, Humidifier, Xerantic equipment, Disc-cleaning machine etc.
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF C82 ELECTRIC MOTOR
C82 series are single-phase capacitor motors, the ac motors have advantages of high efficiency, reasonable structure, small vibration and low noise.
The INDUCTION MOTOR is used in Fan, Air condition motor, Air purifier, Humidifier, Xerantic equipment, Disc-cleaning machine etc.
3. Out-power: 1/12, 1/15, 1/18, 1/20, 1/25, 1/36, 1/49 HP
3. ORDER NOTICE
When customer inquiry or order the electric motor, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
2. Customer can choose steel cover, or aluminum cover
3. Customer can choose PTC and Pt100 thermistor for heat protection of winding and bearing.
5. EXAMPLE PARAMETER (100V,115V,220V,230V)
Power (HP) |
Voltage (V) |
Current (A) |
Speed (RPM) |
Torque (N.m) |
Rotation (Rot.) |
Motor Diameter(In) |
Shaft Diameter(In) |
120 |
0.145 |
1580 |
0.090 |
CW/CCW |
3.35” |
0.315” |
|
1/36 |
230 |
0.106 |
1320 |
0.145 |
CW/CCW |
3.35” |
0.315” |
1/25 |
110 |
0.297 |
1550 |
0.181 |
CW/CCW |
3.35” |
0.315” |
1/20 |
115 |
0.372 |
1490 |
0.236 |
CW/CCW |
3.35” |
0.315” |
1/18 |
230 |
0.196 |
1300 |
0.300 |
CW/CCW |
3.35” |
0.315” |
1/15 |
220 |
0.247 |
1870 |
0.250 |
CW/CCW |
3.35” |
0.393” |
1/12 |
115 |
0.530 |
1570 |
0.373 |
CW/CCW |
3.35” |
0.393” |
Note: Motor’s voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, can be according to customers requirement. |
