Fan70 Cross flow Fans ( with fan motors )

1. PRODUCT INTRODUCTION

FAN70 series are cross-flow-fans with single-phase electricmotor, the fans have advantages of reasonable structure, small vibration and low noise.

The cross-flow-fans are used in: Fan-heater, Electric heaters, Electric fireplace, Electric ovens, Baking chamber, Freezers, etc.

2. TECHNICAL FEATURES

1. Voltage: 36~240 AVC

2. Frequency: 50Hz, 60Hz

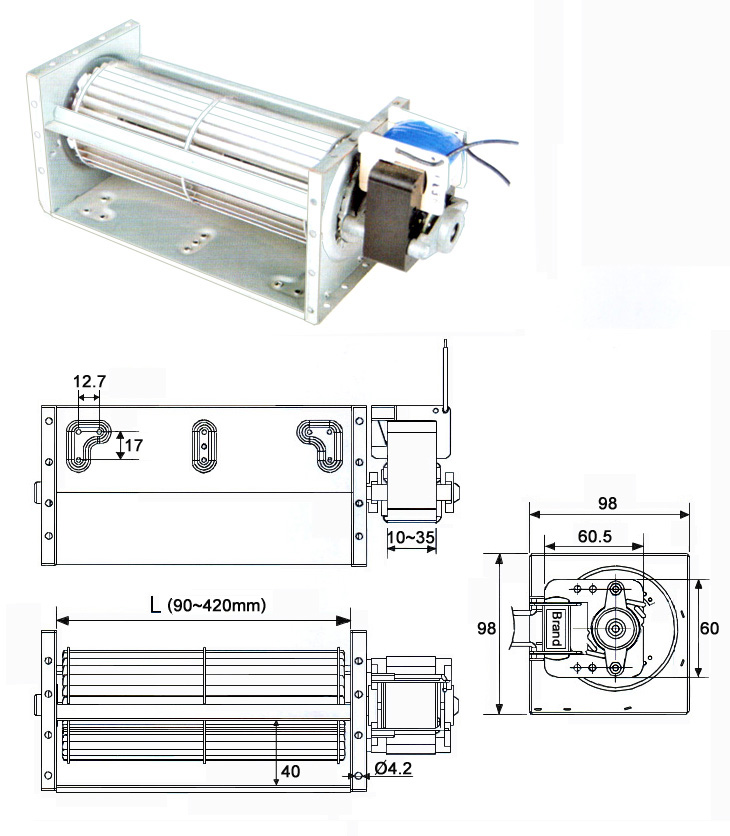

3. Stator dimensions: 60x60.5mm

4. Stator thickness: 10~35mm

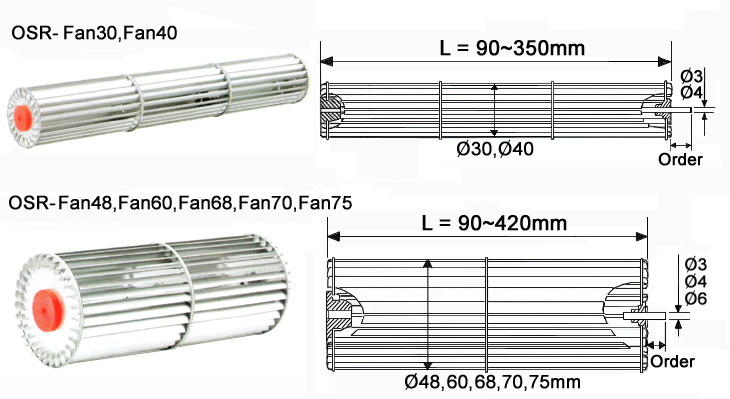

5. Wind wheel dimensions: 70mm diameter,180mm length,can be customized 90~420mm length.

3. ORDER NOTICE

When customer inquiry or order the cross-flow-fans with motors, please specify the cross-flow-fans and single phase motor’s parameter (including voltage, frequency, power, speed, wind wheel length, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
