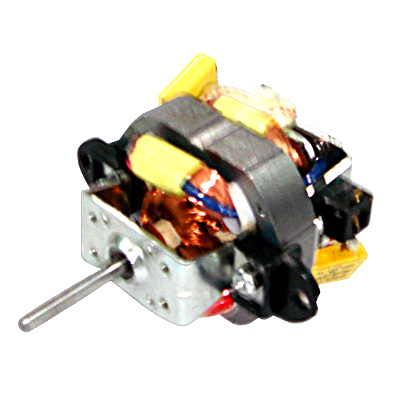

S54-05 Universal motors,single phase motors, electric motor,electrical motors,ac motor,induction motors

Voltage: 100~240 AVC
Frequency: 50Hz, 60Hz
Stator dimensions: 52x45mm
Customers can customize size
Product description: S54-05 electric motor is ac universal motor,single phase series motors,the electrical motors (electric motors) have advantages of high starting torque,The induction motors are used in ice crusher, jui
Inquiry Now

PRODUCT INTRODUCTION

1. PRODUCT INTRODUCTION OF S54-05 ELECTRIC MOTOR

S54-05 series are single phase motor,induction universal motors,AC series motor.The electric motor has advantages of high starting torque, reasonable structure, small vibration and low noise.

The electro-motors are used in: ice crusher, juicer, blender, and other household appliances etc.

2. TECHNICAL FEATURES

1. Voltage: 100~240 AVC

2. Frequency: 50Hz, 60Hz

3. Stator dimensions: 52x45mm

4. Stator thickness: 12, 15, 17mm

3. ORDER NOTICE

When customer inquiry or order the electric-motors, please specify the electric motor’s parameter (including motor voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.

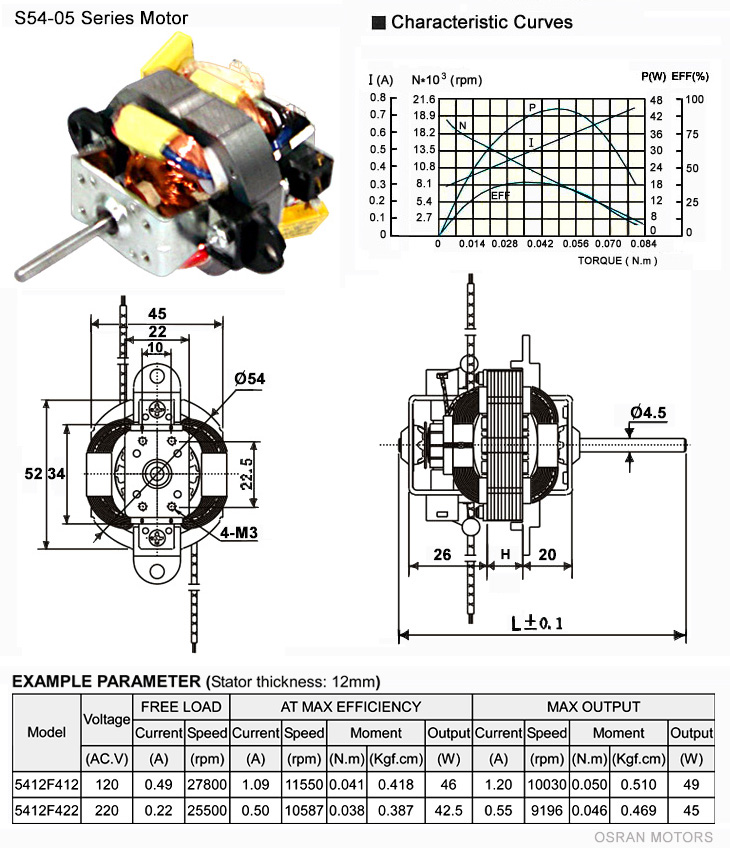

5. EXAMPLE ELECTRIC MOTOR PARAMETER (Stator thickness: 12mm)

Model	Voltage	FREE LOAD		AT MAX EFFICIENCY					MAX OUTPUT
	Voltage	Current	Speed	Current	Speed	Moment		Output	Current	Speed	Moment		Output
	(AC.V)	(A)	(rpm)	(A)	(rpm)	(N.m)	(Kgf.cm)	(W)	(A)	(rpm)	(N.m)	(Kgf.cm)	(W)
5412F412	120	0.49	27800	1.09	11550	0.041	0.418	46	1.20	10030	0.050	0.510	49
5412F422	220	0.22	25500	0.50	10587	0.038	0.387	42.5	0.55	9196	0.046	0.469	45

The Single-phase-motor is S54-05 Universal motor,with electrical motor size
