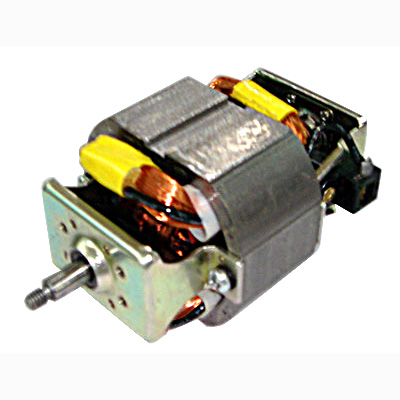

S63-02 Universal motors,single phase motor, electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 61x50mm
- Customers can customize size
- Product description: S63-02 electric motors are single phase universal motors,the AC motor has advantages of high starting torque "small vibration low noise". The induction motors are used in ice crusher,juicer,blender,a
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S63-02 ELECTRICMOTOR
S63-02 series are ac single-phase universal motor,and induction series motors.The ELECTRIC MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motors are used in ice crusher, juicer, blender, and other household appliances etc.
3. Stator dimensions: 61x50mm
4. Stator thickness: 30, 31mm
3. ORDER NOTICE
When customer inquiry or order the electrical motors, please specify the electro-motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

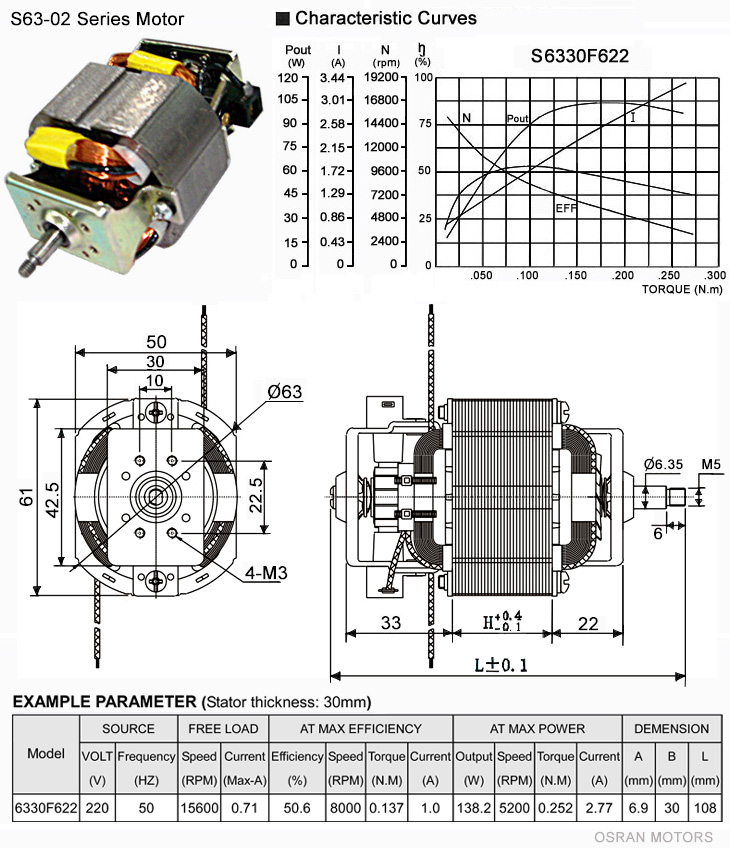

5. EXAMPLE PARAMETER OF ELECTRIC MOTOR (Stator thickness: 30mm)
Model |
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
6330F622 |
220 |
50 |
15600 |
0.71 |
50.6 |
8000 |
0.137 |
1.0 |
138.2 |
5200 |
0.252 |
2.77 |
6.9 |
30 |
108 |
