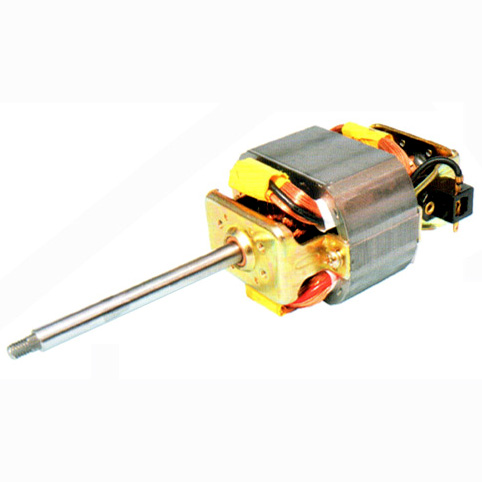

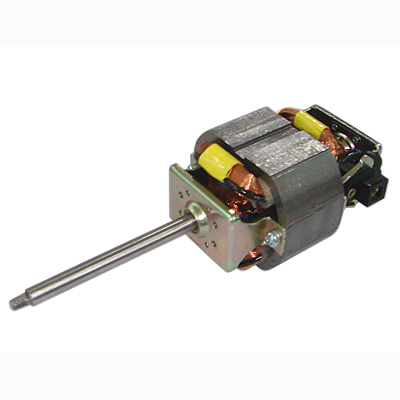

S63-01 Universal motor,single phase motor,ac electric motor,electrical motors,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 62x45mm,61x50mm
- Customers can customize size
- Product description: S63-01 electric motor is single phase universal motor,series motors,the electric motors have high starting torque advantages,small vibration low noise.The induction motors are used in Soybean milk mac
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S63-01 ELECTRIC-MOTOR
S63-01 series are single-phase universal motor, series motors, the ac motors have advantages of high starting torque, reasonable structure, small vibration and low noise.
The INDUCTION MOTORs are used in: Soybean milk machines,Ice crusher,Juicer,Blender,other household appliances etc.
3. Stator dimensions: 62x45mm, 61x50mm
4. Stator thickness: 15~35mm
3. ORDER NOTICE
When customer inquiry or order the ELECTRIC MOTOR, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

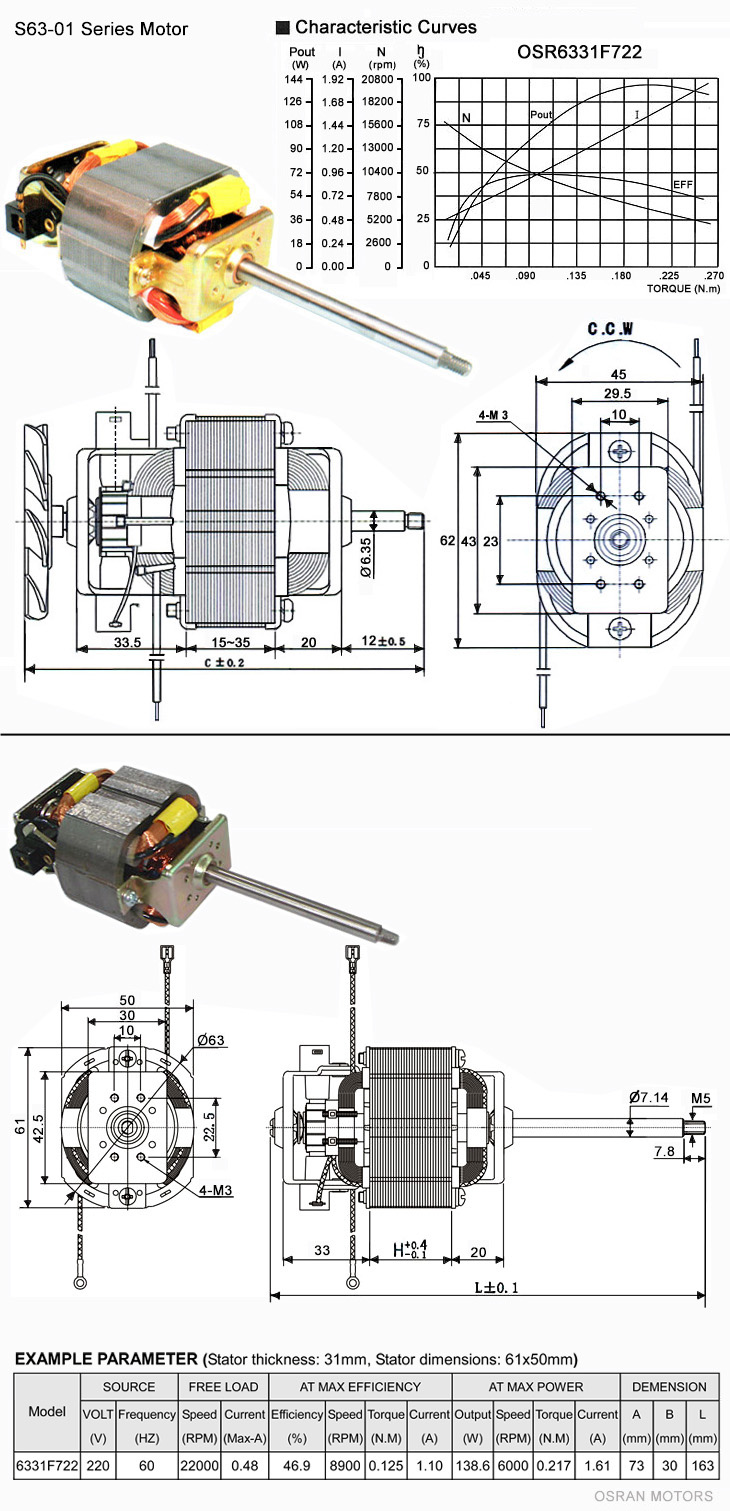

5. EXAMPLE ELECTRIC-MOTOR PARAMETER (Stator thickness: 31mm, Stator dimensions: 61x50mm)
Model |
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
6331F722 |
220 |
60 |
22000 |
0.48 |
46.9 |
8900 |
0.125 |
1.10 |
138.6 |
6000 |
0.217 |
1.61 |
73 |
30 |
163 |
