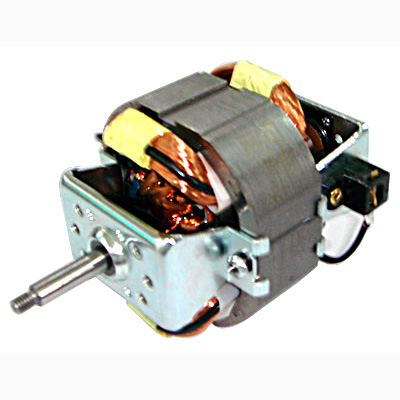

S70-02 Universal motor single phase motor,electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 64x64mm, max 71x71mm
- Customers can customize size
- Product description: S70-02 electric motor is single phase universal motor,series motors,the electrical motors have advantages of high starting torque,"small vibration and low noise".The induction motors are used in Blend
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION
S70-02 series are single-phase universal motor, series motors, the motors have advantages of high starting torque, reasonable structure, small vibration and low noise.
The motors are used in: Blenders, Juicer / Juice Extractors, Mincing Maching, Vacuum Cleaners, Slush Machine, Cuisine Machine, Ice crusher, and other household appliances etc.
3. Stator dimensions: 64x64mm,max 71x71mm
4. Stator thickness: 15~35mm
3. ORDER NOTICE
When customer inquiry or order the motors, please specify the motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

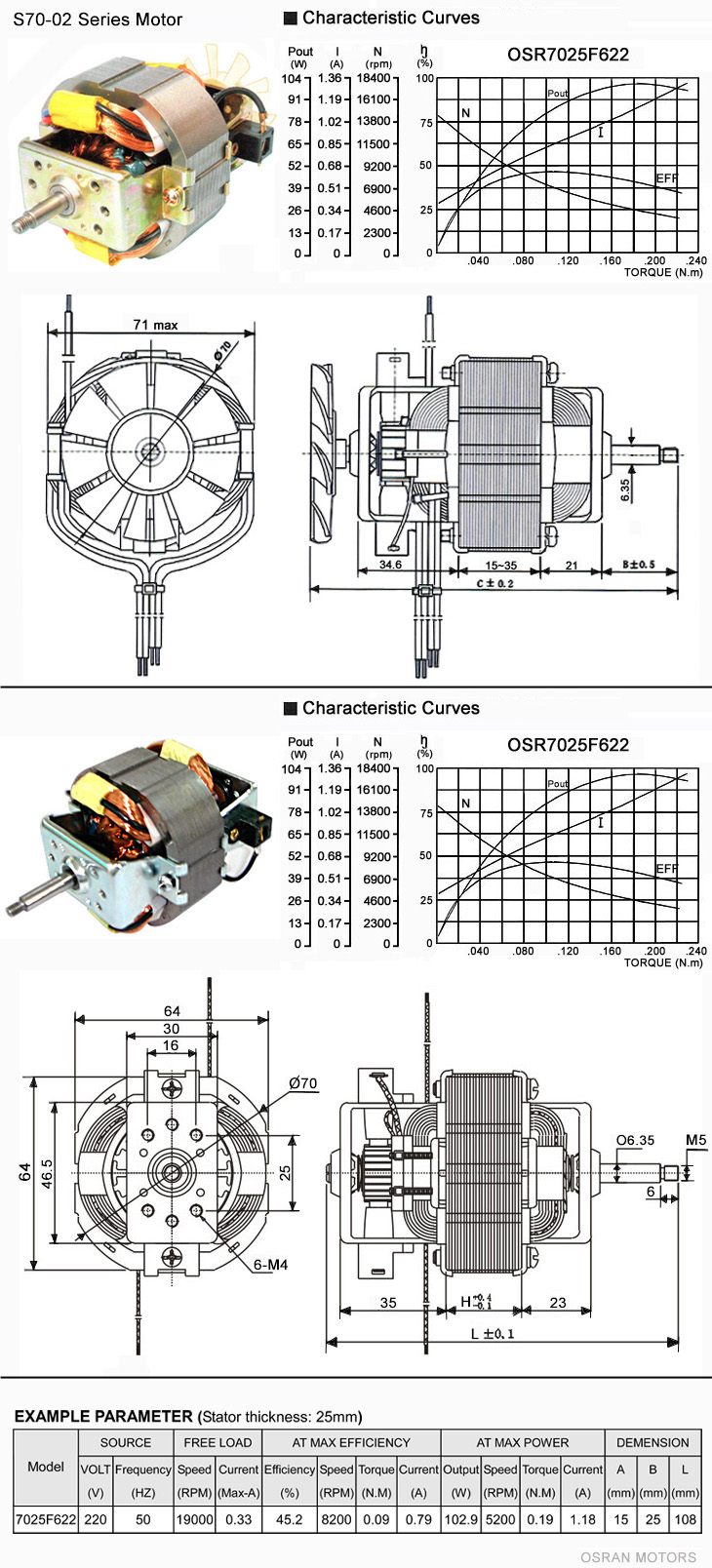

5. EXAMPLE PARAMETER (Stator thickness: 25mm)
Model |
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
7025F622 |
220 |
50 |
19000 |
0.33 |
45.2 |
8200 |
0.09 |
0.79 |
102.9 |
5200 |
0.19 |
1.18 |
15 |
25 |
108 |
