S76 Universal motor single phase motor,electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 64x64mm
- Customers can customize parameter
- Product description: S76 electric motor is single phase motor,universal series motors,the induction motors have advantages "high starting torque","small vibration and low noise".The ac motors are used in "Blenders",Juicer
PRODUCT INTRODUCTION

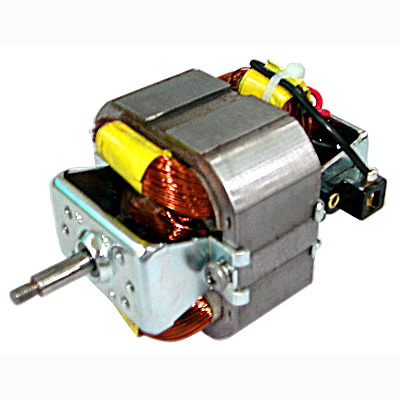

1. PRODUCT INTRODUCTION OF S76 ELECTRIC-MOTOR
S76 series are universal motor,series motors,single-phase ac motor. The ELECTRIC MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motor is used in: Blenders, Juicer /Juice Extractors, Mincing Maching, Vacuum Cleaners, Ice crusher, and other household appliances etc.
3. Stator dimensions: 64x64mm
4. Stator thickness: 20, 25, 30, 35, 40mm
3. ORDER NOTICE
When customer inquiry or order the electricmotors, please specify the electric motors’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

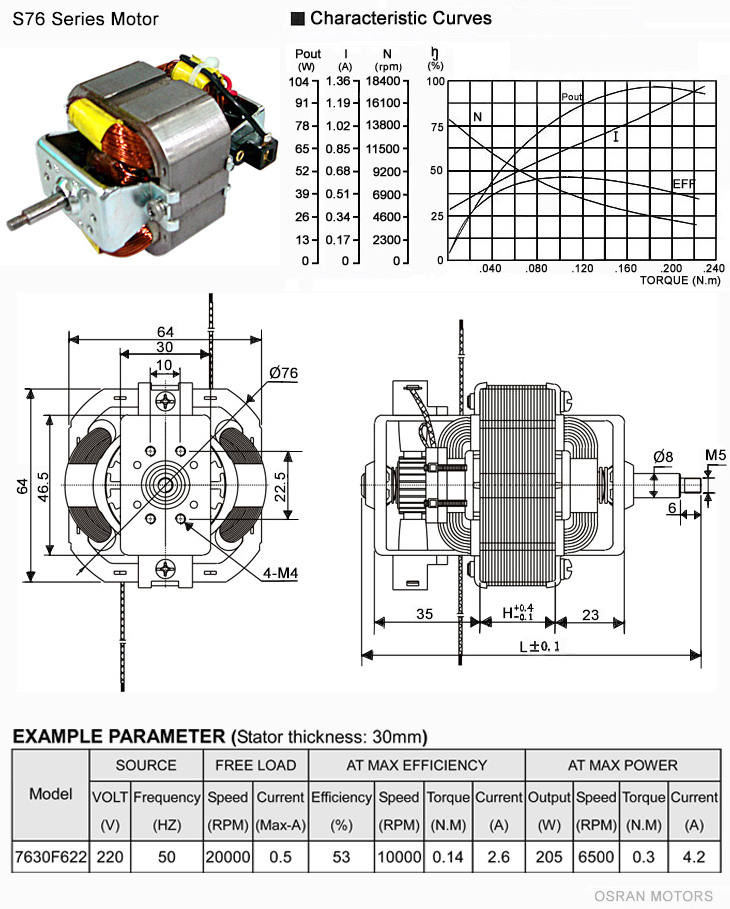

5. EXAMPLE ELECTRIC MOTOR'S PARAMETER (Stator thickness: 30mm)
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
|||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
|
7630F622 |
220 |
50 |
20000 |
0.5 |
53 |
10000 |
0.14 |
2.6 |
205 |
6500 |
0.3 |
4.2 |
