S88-02 Universal motor single phase motor,electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 80x73mm
- Customers can customize parameter
- Product description: S88-02 electric motor is single phase motor (universal),the electric motors have advantages of high starting torque, reasonable structure, small vibration and low noise.The induction motors are used i
PRODUCT INTRODUCTION

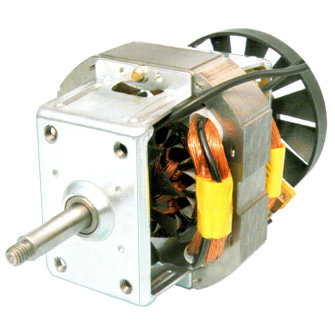

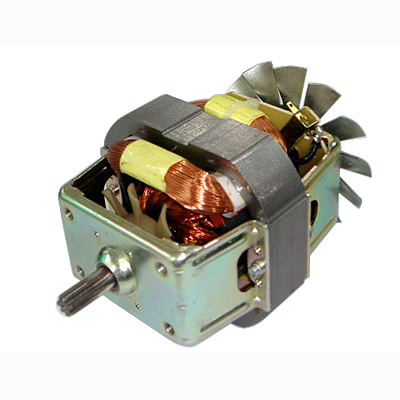

1. PRODUCT INTRODUCTION OF S88-02 ELECTRIC MOTOR
S88-02 series are single-phase universal motors, series motors or serial excite motors, the INDUCTION MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The ac motor is used in Mincing Maching, Ice crusher, Juicer, Blender, other household appliances etc.
3. Stator dimensions: 80x73mm
4. Stator thickness: 20, 25, 30, 35mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

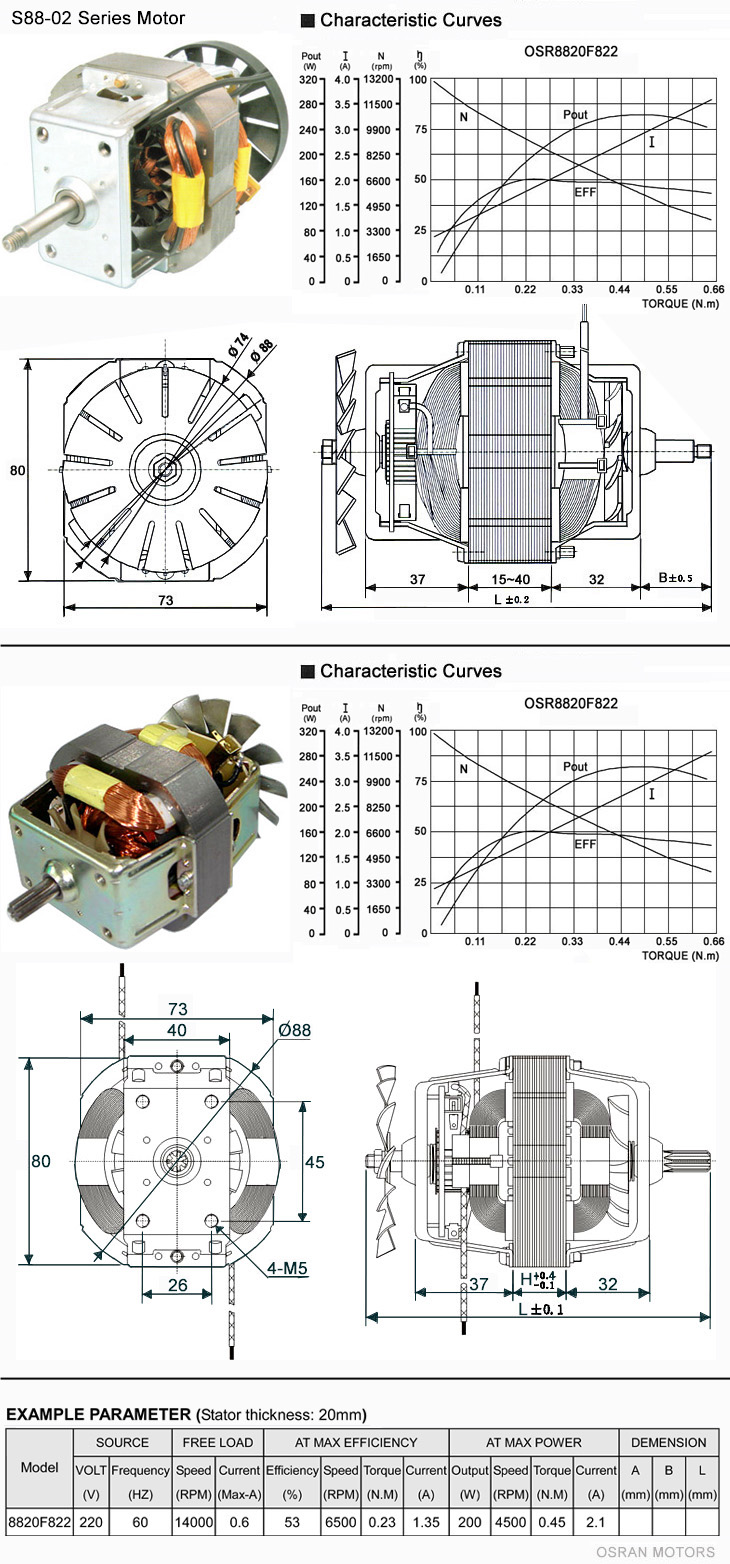

5. EXAMPLE PARAMETER (Stator thickness: 20mm)
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
|||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
8820F822 |
220 |
60 |
14000 |
0.6 |
53 |
6500 |
0.23 |
1.35 |
200 |
4500 |
0.45 |
2.1 |
|
|
|
