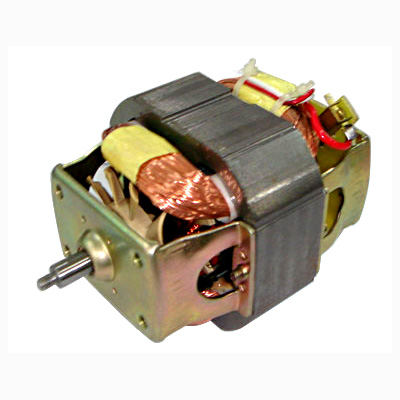

S88-01 Universal motor single phase motor,electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 80x73mm
- Customers can customize parameter
- Product description: S88-01 electric motors are single phase universal motor,the electrical motors have advantages of high starting torque,reasonable structure,small vibration and low noise.The ac motors are used in ice c
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S88-01 ELECTRIC MOTORS
S88-01 series are single-phase-motors and universal motors; series motors and ac INDUCTION MOTORs, also serial excite motors.The electric motor has advantages of high starting torque,reasonable structure,small vibration and low noise.
The electrical motors are used in ice crusher, juicer, blender, and other household appliances etc.
3. Stator dimensions: 80x73mm
4. Stator thickness: 15, 20, 25, 30, 35mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electric motor parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

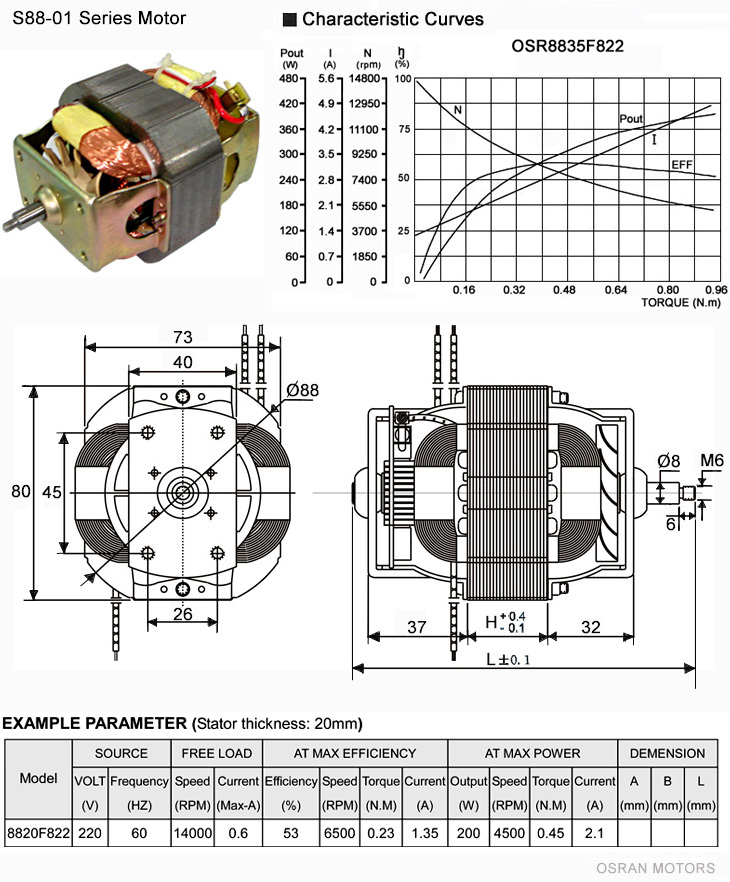

5. EXAMPLE ELECTRIC-MOTOR'S PARAMETER (Stator thickness: 20mm)
SOURCE |
FREE LOAD |
AT MAX EFFICIENCY |
AT MAX POWER |
DEMENSION |
|||||||||||
VOLT |
Frequency |
Speed |
Current |
Efficiency |
Speed |
Torque |
Current |
Output |
Speed |
Torque |
Current |
A (mm) |
B (mm) |
L (mm) |
|
8820F822 |
220 |
60 |
14000 |
0.6 |
53 |
6500 |
0.23 |
1.35 |
200 |
4500 |
0.45 |
2.1 |
|
|
|
