> Universal motor

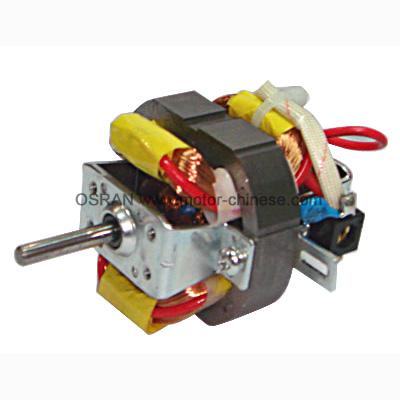

S54-06 Universal motor,single phase motor,electric motor,electrical motors,ac motor,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize parameter
- Product description: S54-06 electric motors are single phase universal motor,series motors,induction motors, have advantages of high starting torque,reasonable structure,small vibration.The electric motor is used in Blend
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54-06 ELECTRICMOTOR
S54-06 series are universal motors,single-phase series motors,induction ac motors.The ELECTRIC MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motor is used in: Blenders, Whipping machine, Chums, and other household appliances etc.
3. Stator dimensions: 52x45mm
4. Stator thickness: 12, 15, 17mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electrical motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.
5. EXAMPLE ELECTRIC MOTORS PARAMETER (Stator thickness: 15mm)
|
Voltage |
FREE LOAD |
AT MAX EFFICIENCY |
MAX OUTPUT |
||||||||||
|
Current |
Speed |
Speed |
Moment |
Output |
Current |
Speed |
Moment |
Output |
|||||
|
(AC.V) |
(A) |
(rpm) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
|
|
5415F412 |
120 |
0.49 |
27800 |
1.09 |
11550 |
0.041 |
0.418 |
46 |
1.20 |
10030 |
0.050 |
0.510 |
49 |
|
5415F422 |
220 |
0.22 |
25500 |
0.50 |
10587 |
0.038 |
0.387 |
42.5 |
0.55 |
9196 |
0.046 |
0.469 |
45 |
