S54-07 Universal motors,single phase motor, electric motor,electrical motors,ac motor,induction motor

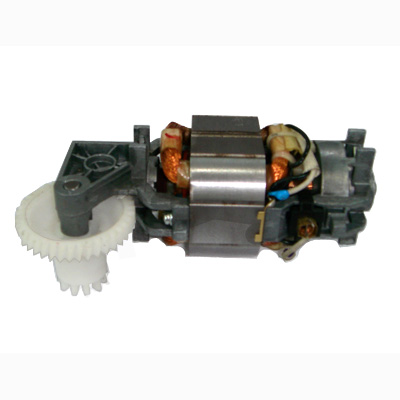

1. PRODUCT INTRODUCTION OF S54-07 ELECTRICMOTOR

S54-07 series are series motors,universal motors,single phase motors,ac asynchronous motor.The electric-motor has advantages of high starting torque, reasonable structure, small vibration and low noise.

The electric-motors are used in: Cutting machines, and other household appliances etc.

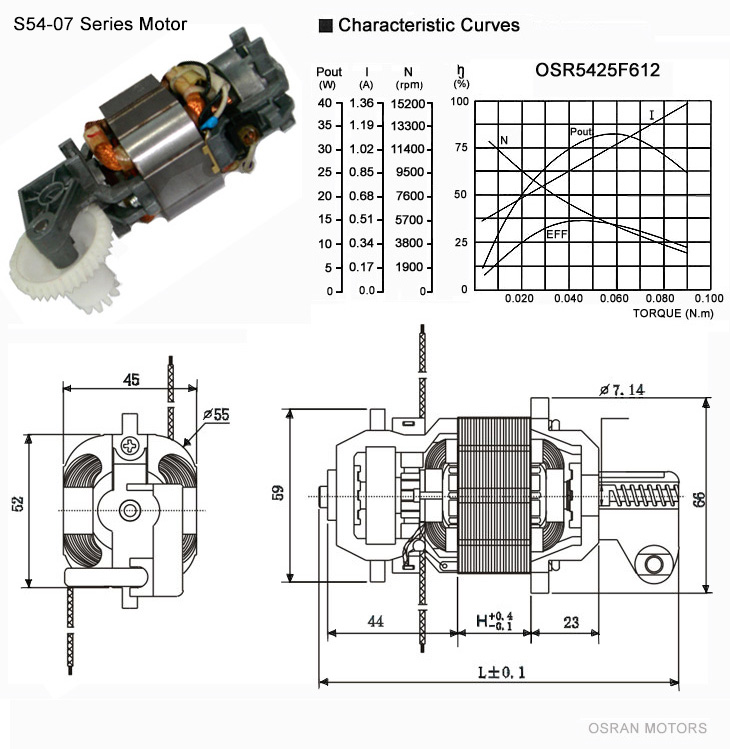

2. TECHNICAL FEATURES

1. Voltage: 100~240 AVC

2. Frequency: 50Hz, 60Hz

3. Stator dimensions: 52x45mm

4. Stator thickness: 25, 30, 35mm

3. ORDER NOTICE

When customer inquiry or order the electricmotors, please specify the electrical motor’s parameter (including motor's voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).

4. OPTIONAL ACCESSORIES

1. Customer can choose sliding bearings, or ball bearings.
