> Universal motor

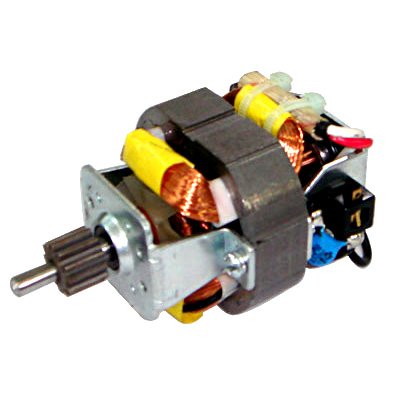

S54-08 Universal motor,single phase motor,ac electric motor,electrical motors,induction motor
- Voltage: 100~240 AVC
- Frequency: 50Hz, 60Hz
- Stator dimensions: 52x45mm
- Customers can customize parameter
- Product description: S54-08 electric motor is single phase universal motors,the electric motors have high starting torque advantages,small vibration"low noise". The electrical motors are used inBlender[Grinding machines,
PRODUCT INTRODUCTION
1. PRODUCT INTRODUCTION OF S54-08 ELECTRICMOTOR
S54-08 series are single-phase-motors,universal motor and series motors,also avc INDUCTION MOTOR. The ELECTRIC MOTORs have advantages of high starting torque, reasonable structure, small vibration and low noise.
The electric motor is used in Blender, Grinding machines, Ice crusher, Juicer, other household appliances etc.
3. Stator dimensions: 52x45mm
4. Stator thickness: 15, 20, 25, 30mm
3. ORDER NOTICE
When customer inquiry or order the electric motors, please specify the electric motor’s parameter (including voltage, frequency, power, speed, shaft diameter, shaft length, shaft shape, silicon steel sheet laminated thickness, direction of rotation(view from the drive shaft end).
4. OPTIONAL ACCESSORIES
1. Customer can choose sliding bearings, or ball bearings.

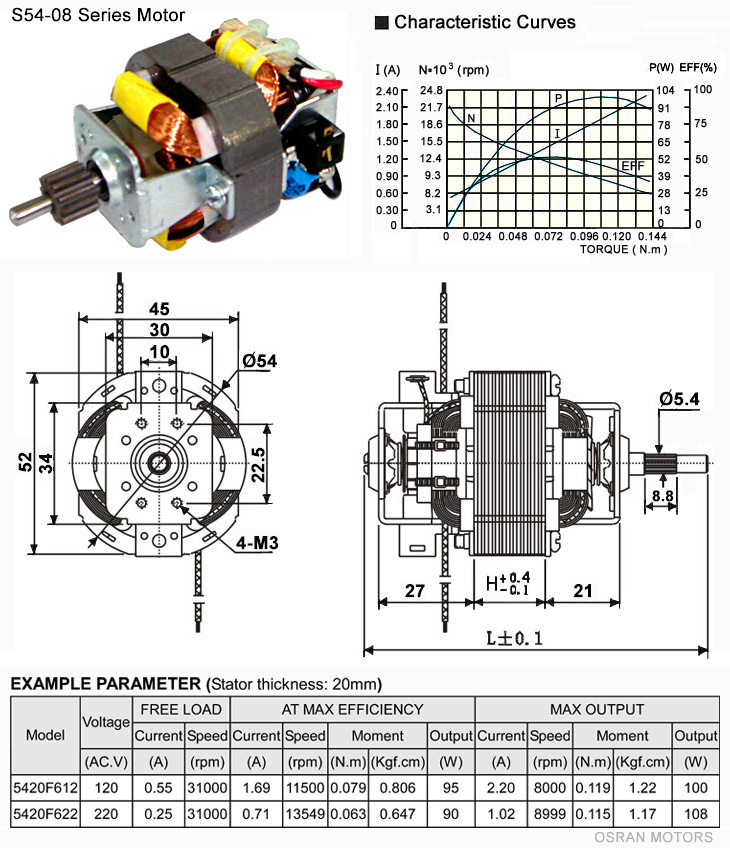

5. EXAMPLE ELECTRIC-MOTOR PARAMETER (Stator thickness: 20mm)
|
Voltage |
FREE LOAD |
AT MAX EFFICIENCY |
MAX OUTPUT |
||||||||||
|
Current |
Speed |
Speed |
Moment |
Output |
Current |
Speed |
Moment |
Output |
|||||
|
(AC.V) |
(A) |
(rpm) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
(A) |
(rpm) |
(N.m) |
(Kgf.cm) |
(W) |
|
|
5420F612 |
120 |
0.55 |
31000 |
1.69 |
11500 |
0.079 |
0.806 |
95 |
2.20 |
8000 |
0.119 |
1.22 |
100 |
|
5420F622 |
220 |
0.25 |
31000 |
0.71 |
13549 |
0.063 |
0.647 |
90 |
1.02 |
8999 |
0.115 |
1.17 |
108 |
